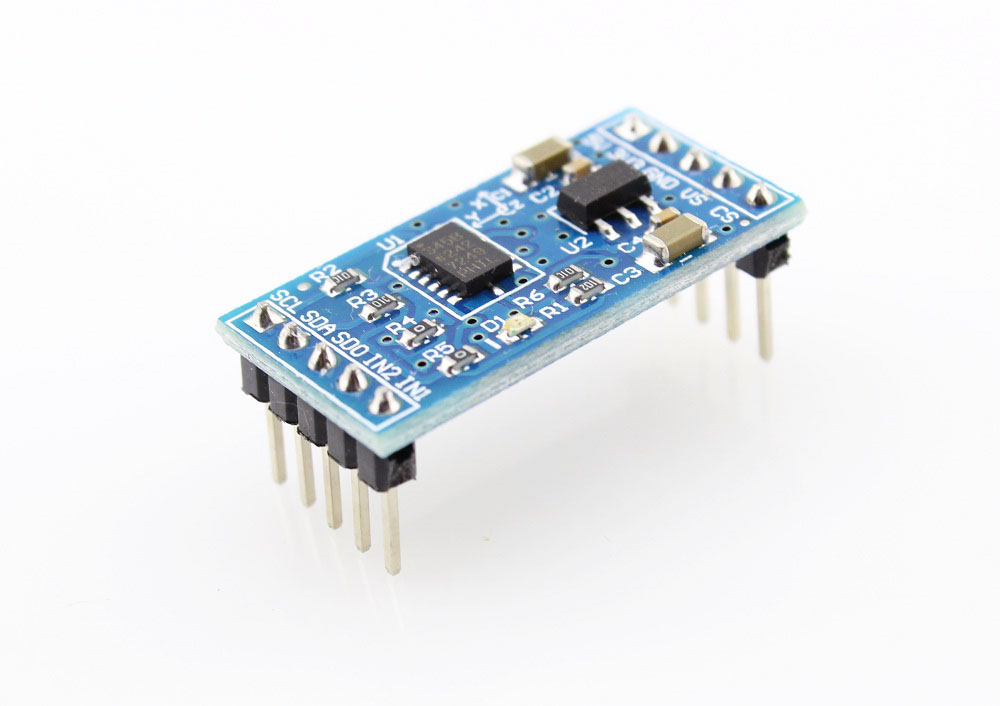

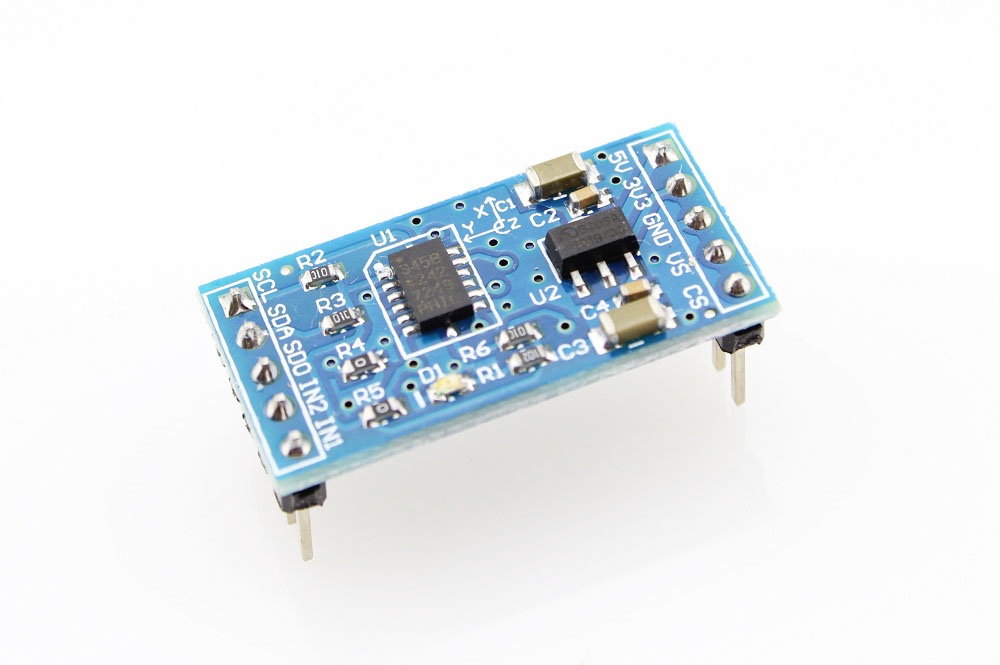

3 Axis Digital Accelerometer - ADXL345

US $1.80
Always Free Shipping
  • Model: ADXL345 Modules
  • Shipping Weight: 5g
  • 52 Units in Stock

Description

This ADXL345 module is low power consumption and a 3-axis accelerometer, it communicate with MCU with I2C or SPI communication with user selectable sensitivity and 10-13 bit resolution. The ADXL345 is well suited to measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins.

Features

  • Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V.
  • Tap/Double Tap Detection.
  • Free-Fall Detection.
  • SPI and I2C interfaces.

Specification

  • Working voltage:3.0~5V.
  • Sensitivity:
    • X:28.6 LSB/g.
    • Y:31.2 LSB/g.
    • Z:34.5 LSB/g.
  • Suitable for Game controlsMotion detection
