4.3" Graphical LCD Touchscreen, 480x272, SPI, FT800

US $25.00
Always Free Shipping
  • Model: FT800CB-HY43B
  • Shipping Weight: 130g
  • 447 Units in Stock

Description

The FT800CB is a development module for FTDI’s FT800, which is used to develop and demonstrate the functionality of the FT800 Embedded Video Engine, EVE.

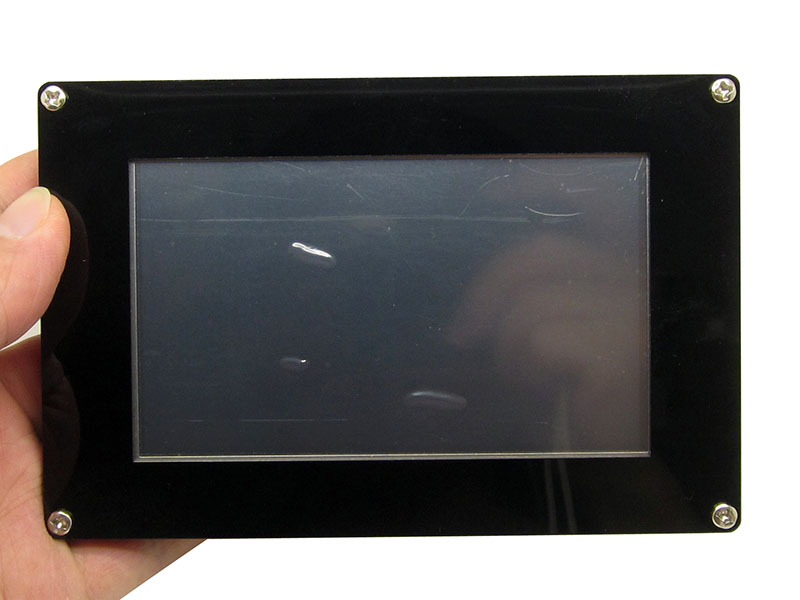

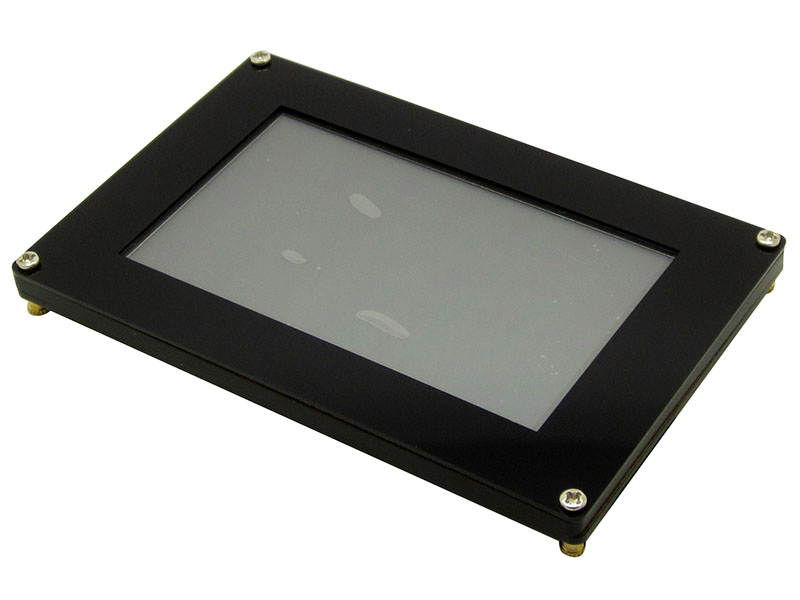

The modules contains an FT800Q graphic controller and a 4.3" TFT color display with 480×272-pixel resolution, Each pixel can display 262K different colors. The TFT display is covered with a resistive touch panel which can be used as an input device.

This module behaves as an SPI slave, and requires a SPI Master for proper micro-controller interfacing and system integration.

FT810CB hardware is compatible with FT800CB, FT800CB and FT810CB support different LCD panel size options and are designed for industrial or commercial environments with precision fitted bezels in black.

Features

The FT800CB utilises the FTDI FT800 Embedded Video Engine, EVE. Graphic, audio and touch features of the FT800 chip can be accessed with the FT800CB. For a full list of the FT800’s features please see the FT800 datasheet.

  • Ready to use LCD module.
  • Integrated with resistive touch screen LCD panel
  • 0.5mm connector FPC socket for interfacing
  • Integrated 0.5mm connector FPC socket to 2.54mm Pitch Connector Headers board
  • 5V tolerant buffers when used with a 5V SPI Master
  • Precision fitted bezel in black

Package list

  • 1 x FT800CB-HY43B
  • 1 x 12 pin FPC connect cable
