7" Display 1280x800 IPS Super TFT - HDMI/VGA/NTSC/PAL

US $55.00
Always Free Shipping
  • Model: HY-070-HDMI-A
  • Shipping Weight: 250g
  • 80 Units in Stock

Description

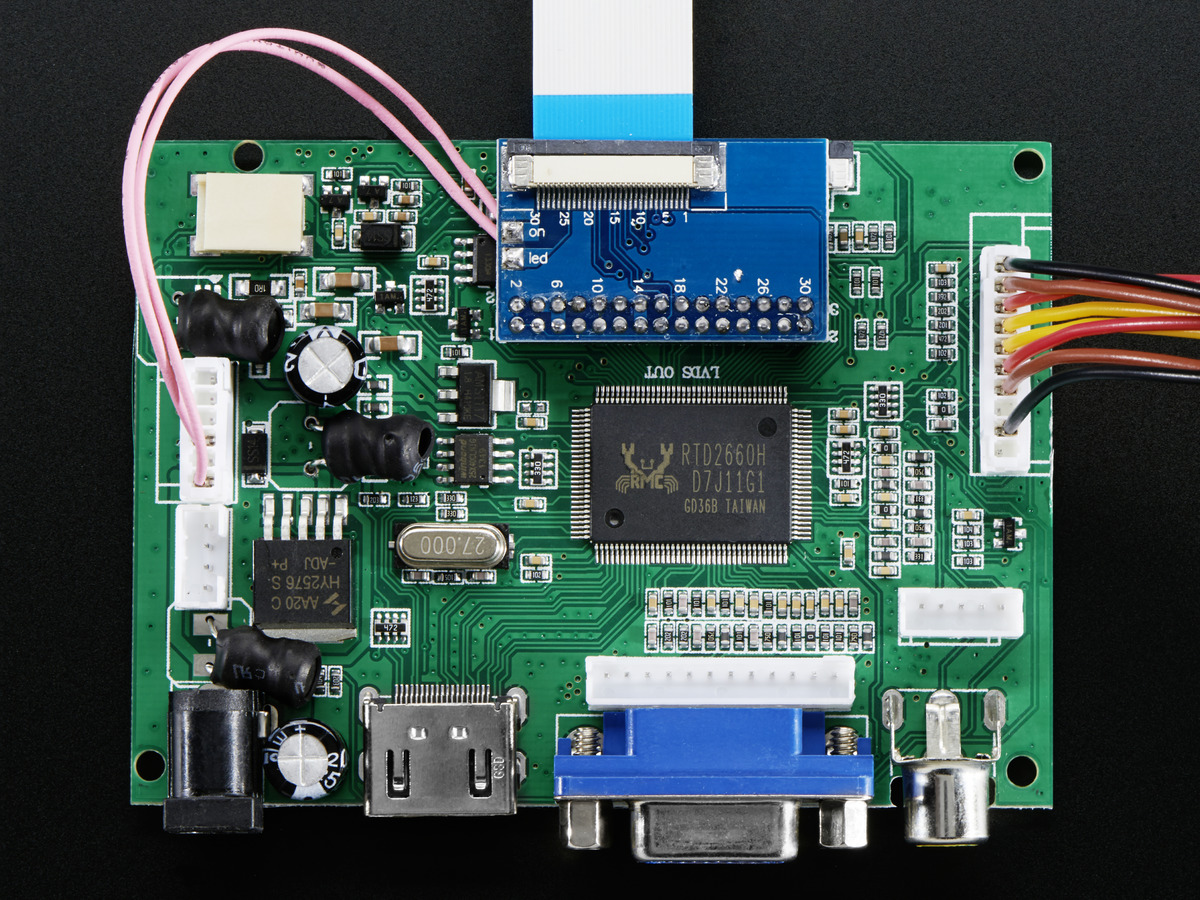

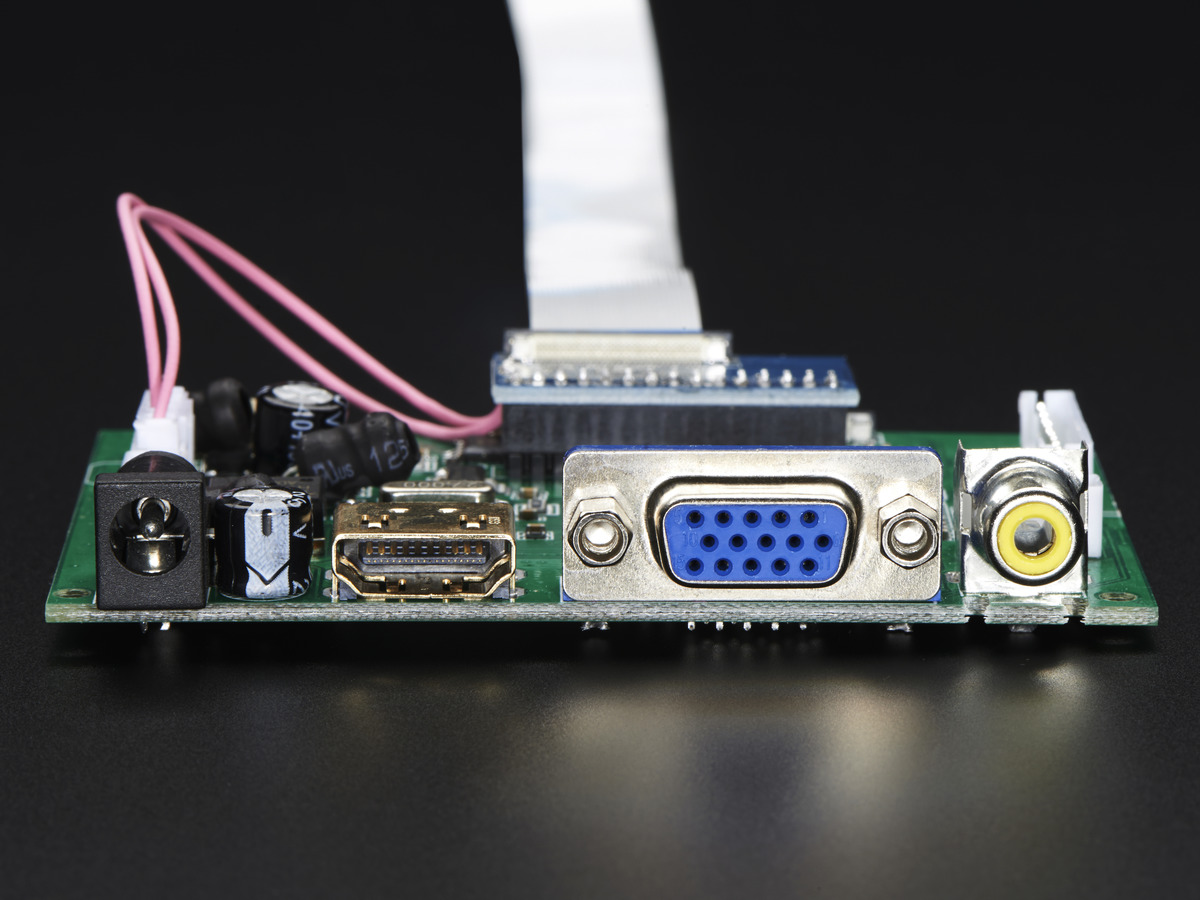

this is a bright (IPS Super TFT) 7" TFT display with incredibly high resolution and great angle-visibility! We tried to get the thinnest, brightest, highest resolution display that would be good for embedded computing usage. The visible display measures 7" diagonal and is a 'raw LVDS' display as is used in a tablet which makes it ultra thin and very bright. We include a driver board with HDMI, VGA and Composite inputs. The setup is very easy to use - simply connect a 5 to 9VDC adapter to the 2.1mm center-positive DC jack, then connect a digital video source to one of the ports .

There's a little wired PCB with little buttons that let you enter a menu system for adjusting brightness, color and contrast. It tried to auto-detect which input you have and switches to that one or you can 'select' from the menu which to display.

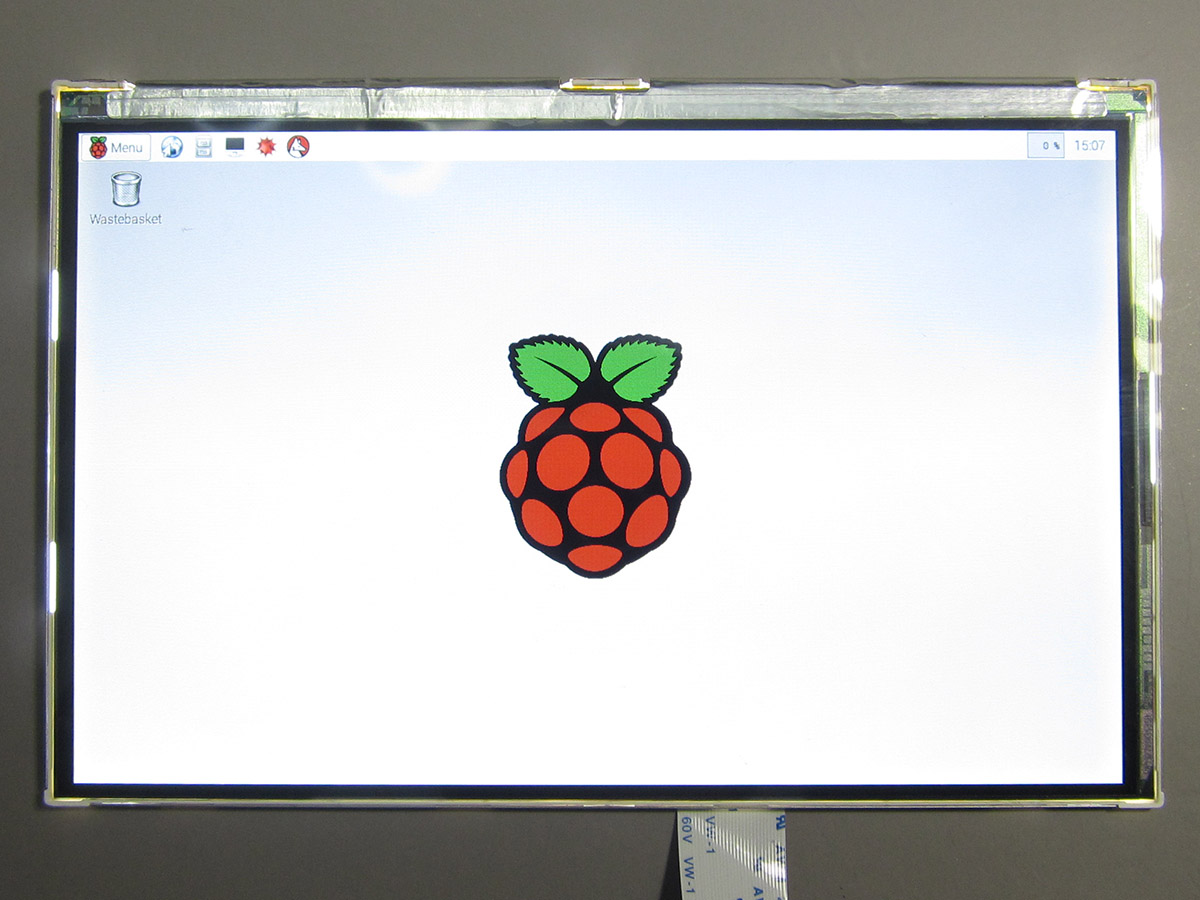

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any device with HDMI, VGA or NTSC/PAL output. It will not work with a device that only outputs DVI (without a DVI to HDMI converter) or SECAM.

For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to 1280x800 in case it doesn't detect the resolution properly. You can see our suggested config.txt in the Technical details tab. The easiest way to edit the config.txt is to put the Pi SD card into an every day computer and edit config.txt with any text editor and save.

For use with a BeagleBone black, we found it works when plugged in, no configuration required.

A power adapter is NO LONGER included. You will need to either purchase a 9-12VDC adapter or you can use one you've already got around the house.

Features

  • Power with 5-12VDC (recommended)
  • 16:10 display ratio
  • Resolution: 1280 x 800
  • Visible area: 150mm x 95mm 16:10
  • Brightness: 400cd/m2
  • Contrast: 800:1
  • We ship with a HSD070PWW1-A display.
  • Not HDCP compatible - it cannot be used with 'secured' HDMI sources
  • Display dimensions: 105mm x 160mm x 3mm / 4.1" x 6.3" x 0.1"

Power draw from combined display+HDMI driver when backlight is on

  •     5V: 980mA (not recommended, sometimes doesn't work @ 5V)
  •     6V: 780mA
  •     7V: 660mA
  •     8V: 575mA
  •     9V: 515mA
  •     10V: 450mA
  •     11V: 415mA
  •     12V: 380mA



Package content

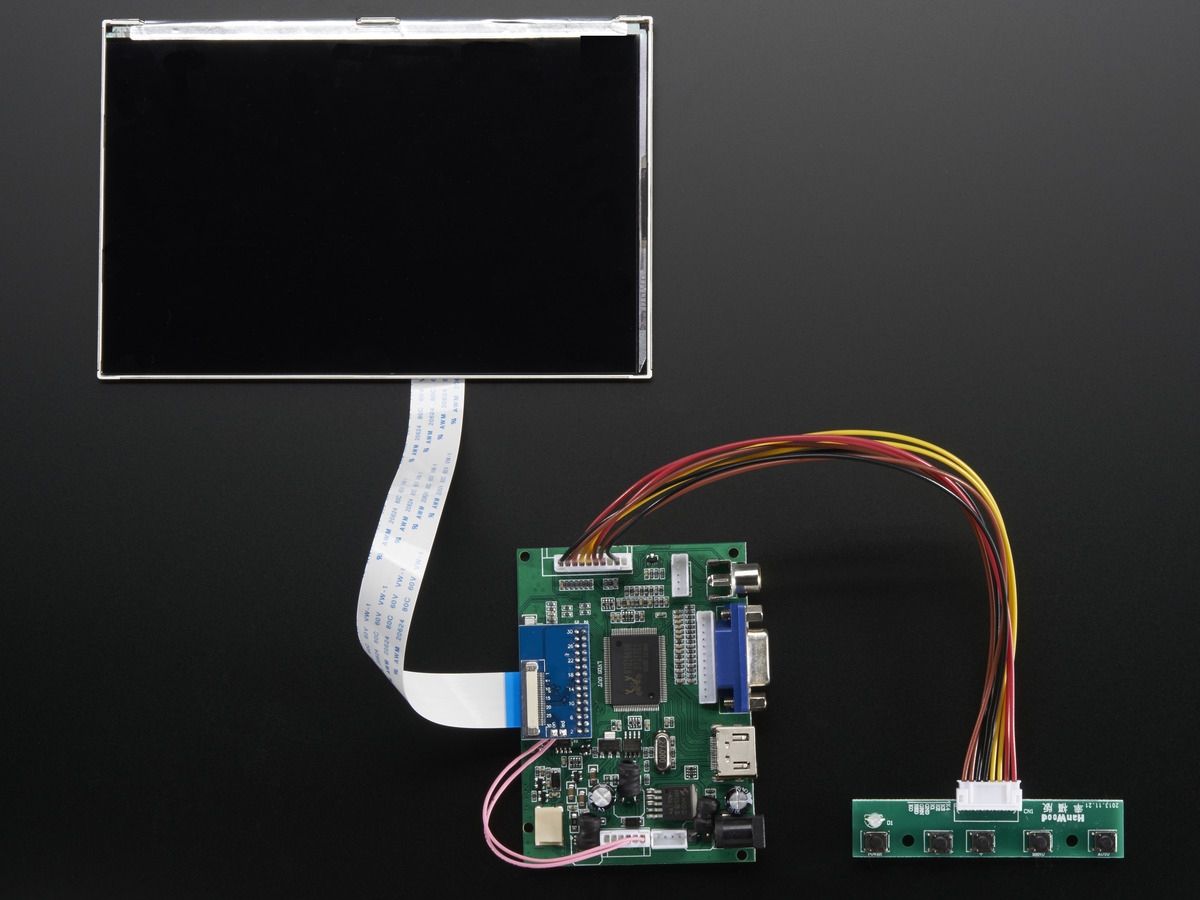

  • 1 X HDMI+VGA+2AV Controller Board
  • 1 X 7 inch 1280*800 HSD070PWW1 LCD modules
  • 1 X Keyboard with Wire
  • 1 X Connect cable
