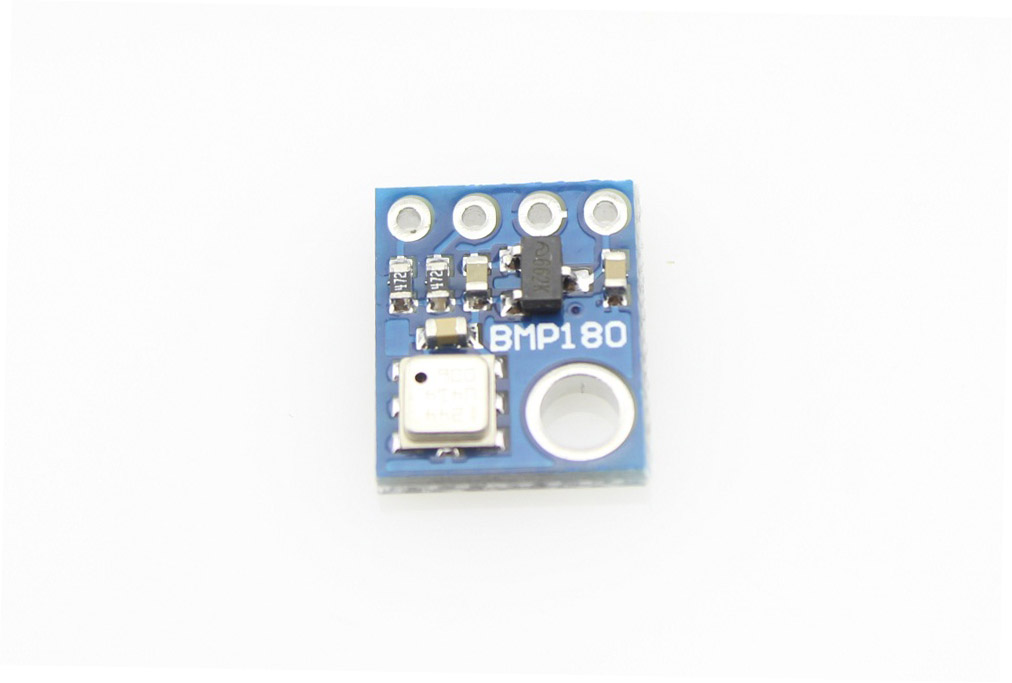

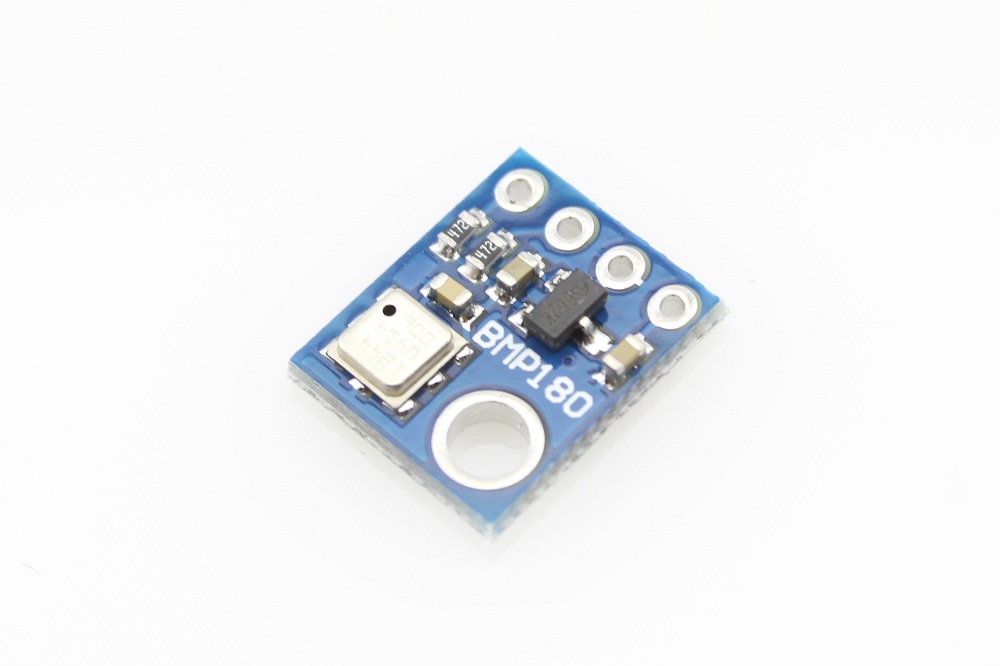

BMP180 Barometer Pressure/Temperature/Altitude Sensor

US $1.80
Always Free Shipping
  • Model: GY-68
  • Shipping Weight: 4g
  • 351 Units in Stock

Description

This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. The BMP180 is the next-generation of sensors from Bosch, and replaces the BMP085. The good news is that it is completely identical to the BMP085 in terms of firmware/software/interfacing - you can use any example code/libraries for BMP085 as a drop-in replacement.

Specification

  • Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
  • Up to 0.03hPa / 0.25m resolution
  • -40 to +85°C operational range, +-2°C temperature accuracy

Document
