Digital Display Thermometer with DS18B20

US $8.80
Always Free Shipping
  • Model: DS18B20-Thermometer
  • Shipping Weight: 60g
  • 37 Units in Stock

Description

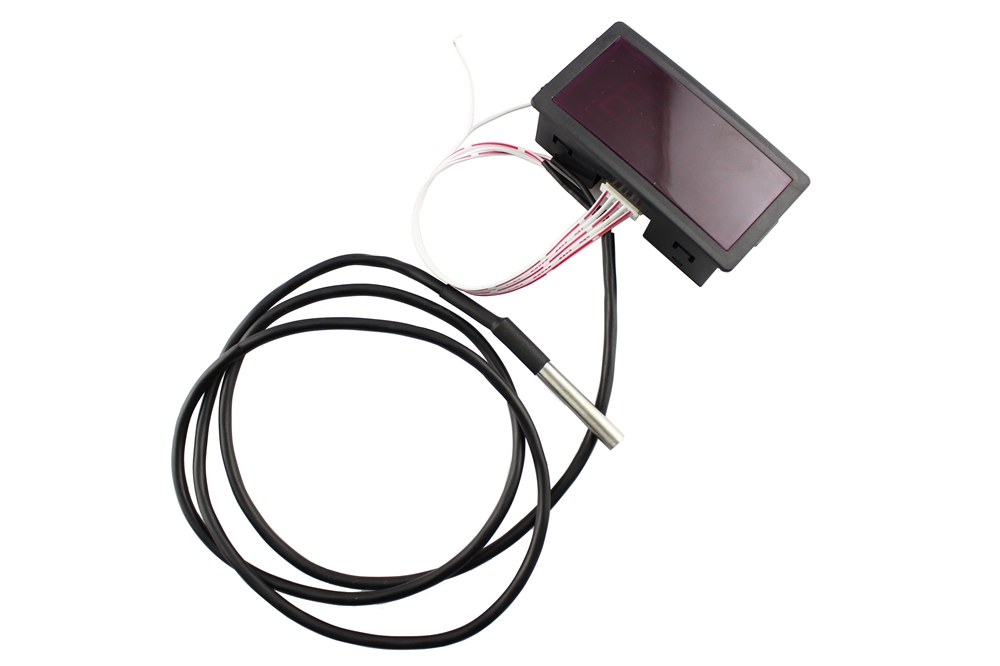

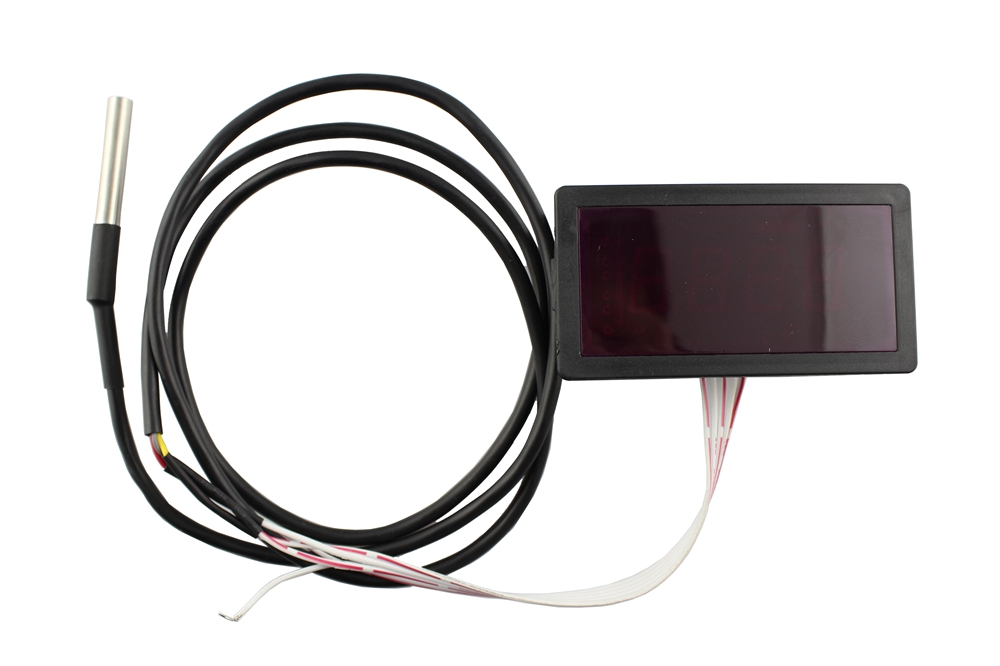

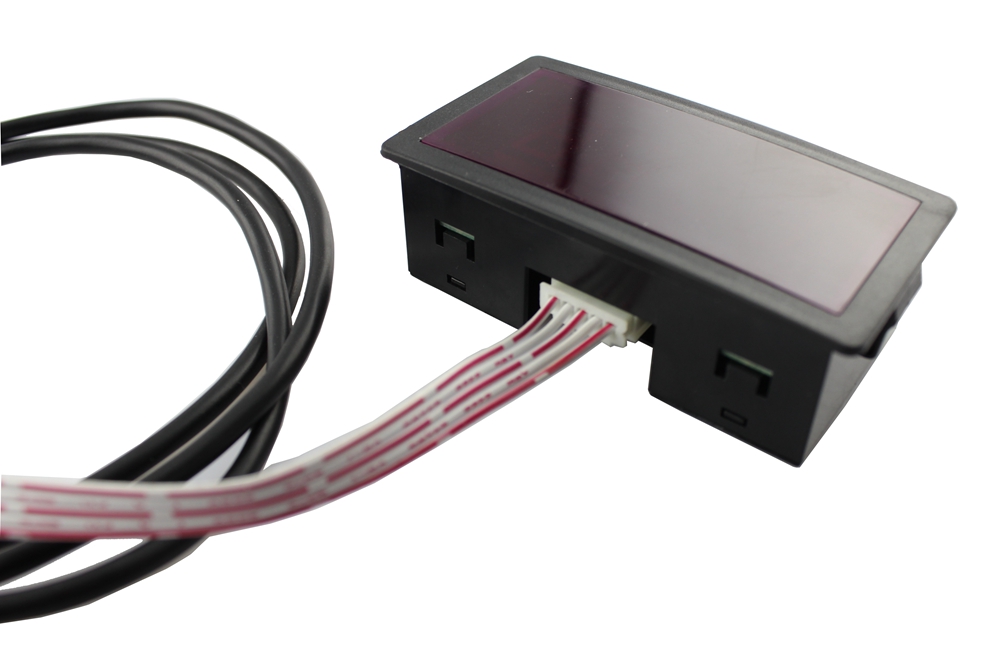

This is a digital display thermometer which use with DS18B20. It has a Panel table that can display the temperature information. Internal use of the latest type of A / D conversion chip and high-stable reference IC, extensive use of SMD components, circuit design and reasonable. It can be used to measure voltage, current, but also external sensors to measure temperature, pressure, displacement, and other physical quantities. Suitable for a variety of digital instrument display purposes. It has good stability, high measurement accuracy, anti-jamming capability. Overall standard size, easy installation.

Specification

  • Operating voltage: AC / DC 8-24V otherwise 5v power supply version, customers need to explain in a note.
  • Display methods: 0.56 Red LED

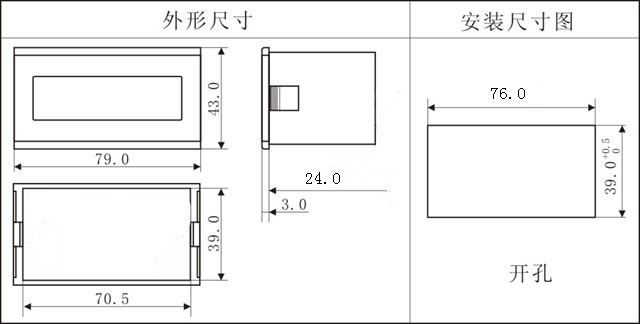

  • Dimensions: 79 x 43 x25 mm
  • Installation hole: 76 × 39 mm
  • Display refresh rate: ≥3 times / S
  • Temperature measurement range: -55 degrees C - +125 degrees Celsius
  • Display resolution: 0.1
  • Measurement accuracy: + - 0.5 degrees Celsius
  • Probe fault display "----"
  • Temperature sensor: DS18B20

Package list

  • Digital Display Thermometer(DS18B20) x 1
