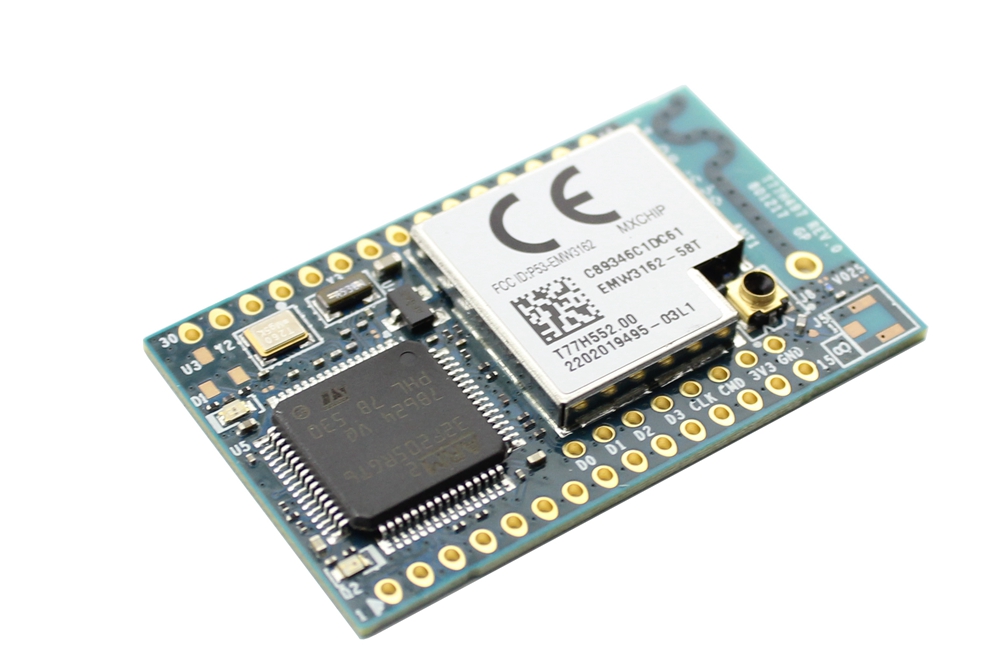

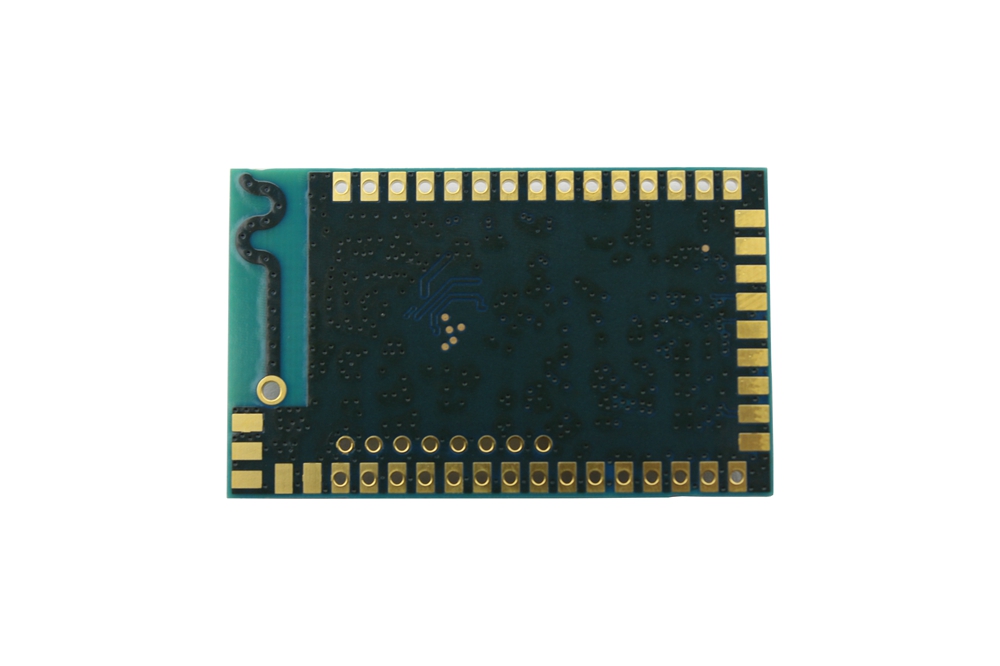

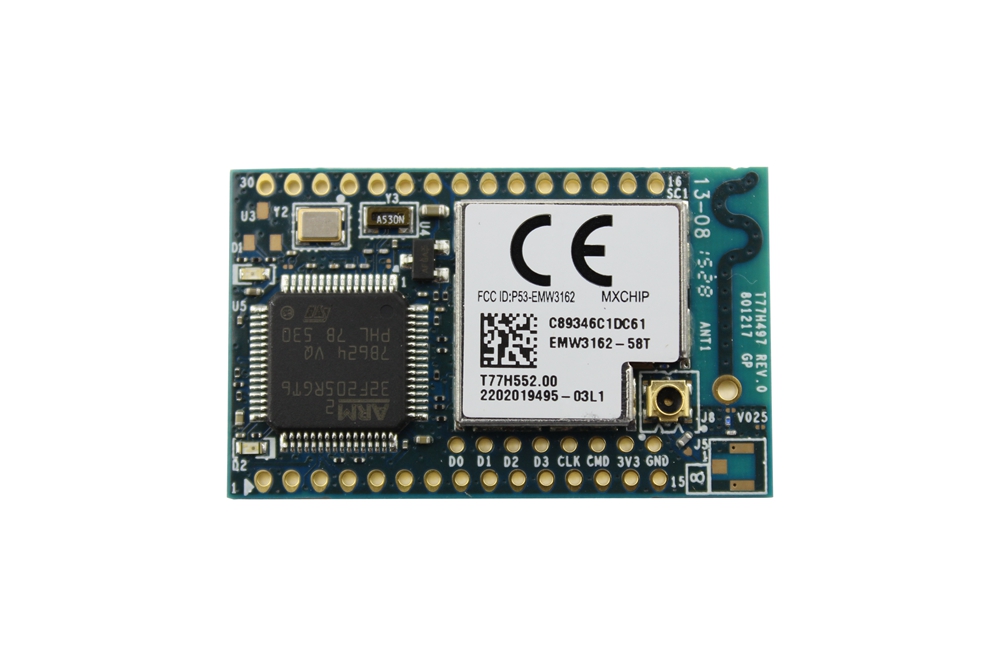

EMW3162-P Wi-Fi Module (Broadcom WICED, STM32F205, PCB Antenna)

US $11.00
Always Free Shipping
  • Model: EMW3162
  • Shipping Weight: 2.8g
  • 88 Units in Stock

Description

EMW3162 is a low-power embedded Wi-Fi module integrates a wireless LAN MAC/baseband /radio, and a Cortex-M3 microcontroller STM32F205 that runs a unique "self-hosted" Wi-Fi networking library and software application stack. EMW3162 has 1M bytes flash, 128k RAM and rich peripherals for your embedded Wi-Fi applications. EMW3162 is also an mxchipWNetTM compatible platform, users can build their own embedded Wi-Fi applications based on mxchipWNetTM library which manage all of the Wi-Fi MAC and TCP/IP stack processing. We also provide several mxchipWNetTM firmware to meet typical applications: wireless UART, wireless audio, wireless sensor etc. When using mxchipWNetTM-DTU firmware, you can establish Wi-Fi networking for any device with a micro-controller and a serial interface. Quick development cycles enables fast time to market. EMW3162 and EMW3280 are pin compatible.

Features

  • Single operating voltage: 3.3V
  • Keep Wi-Fi only about 7mA current
  • Stand by power consumption of about 8μA
  • Contains a 120MHz clock speed of STM32F2 microcontrollers, embedded 1M bytes of Flash, 128k bytes of SRAM
  • 32 GPIO port
  • 1 SPI / IIS interface
  • 10 ADC input channels, two DAC output channels
  • 1 USB OTG port, two CAN interfaces
  • 1 I2C Interface
  • Each GPIO port has PWM input, output, and timer input and output channels
  • SWD Debug Interface
  • Supports IEEE 802.11 b / g / n, Wi-Fi bands 1-13
  • Transmit Power: 18dBm @ 11b, 15dBm @ 11g, 14.5dBm @ 11n
  • Receiver sensitivity: -96dBm
  • Data transfer rate: 11@802.11b, 54M@802.11g, 72M@802.11n
  • Encryption: WEP, WPA / WPA2 PSK / Enterprise
  • A variety of energy-saving mode
  • Onboard PCB antenna can also be connected to an external antenna via IPEX
  • Each module has been specifically tuned RF and passed CE, FCC and other international certification
  • SWD debug interface

Package list

  • EMW3162 x 1
