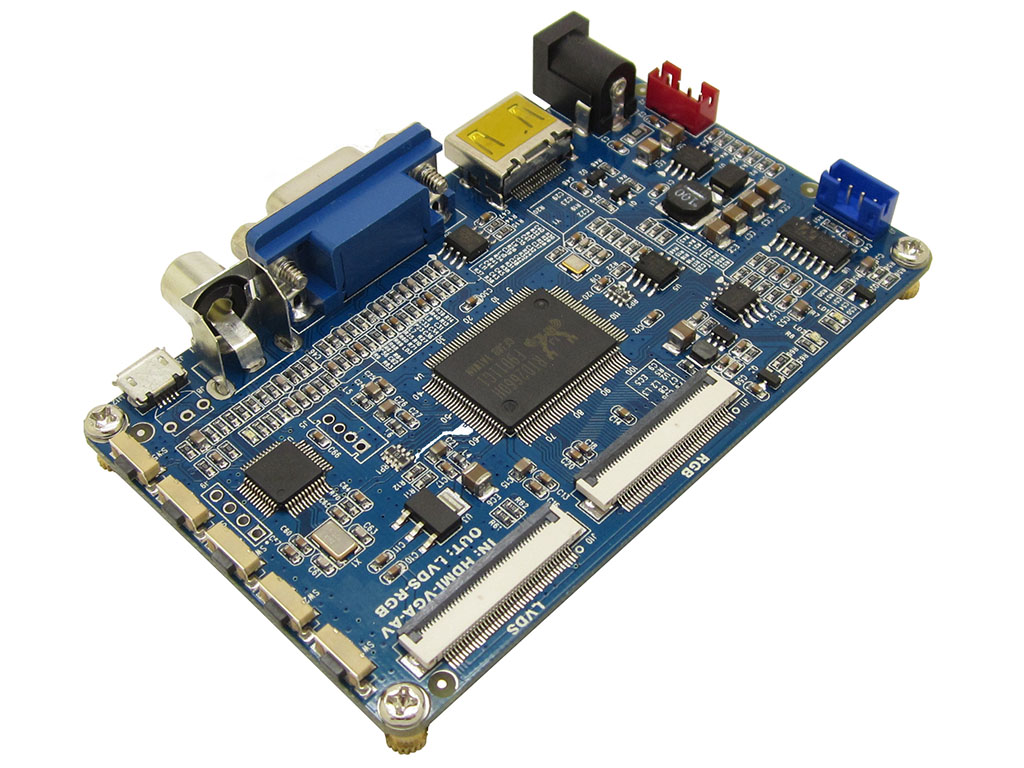

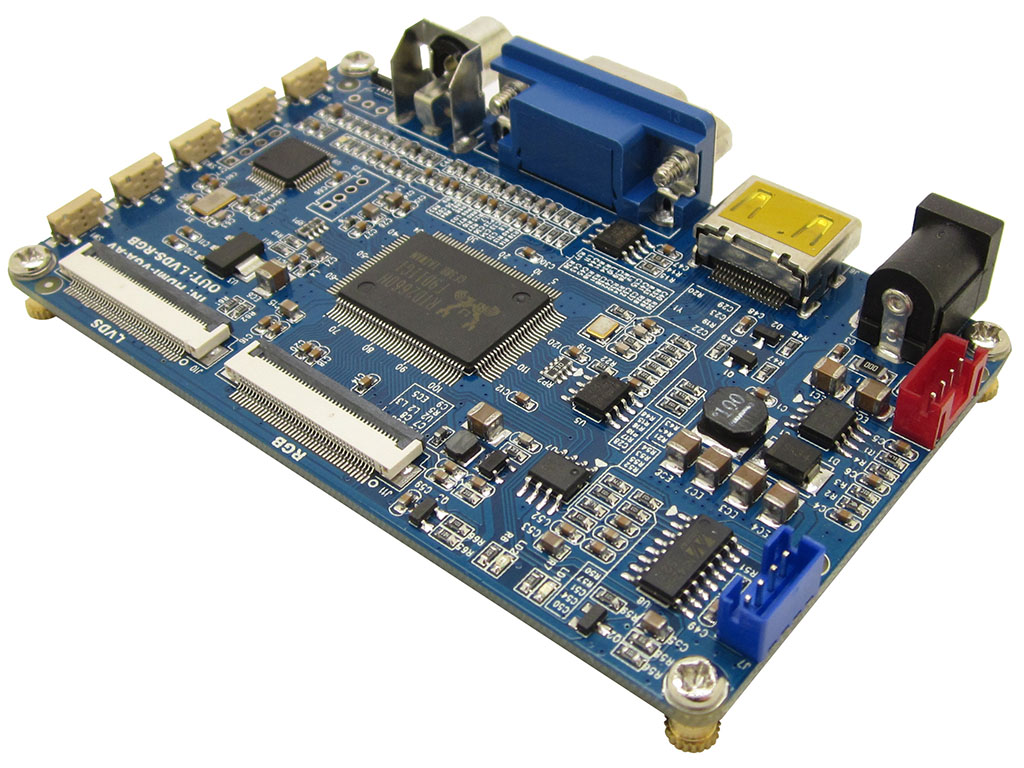

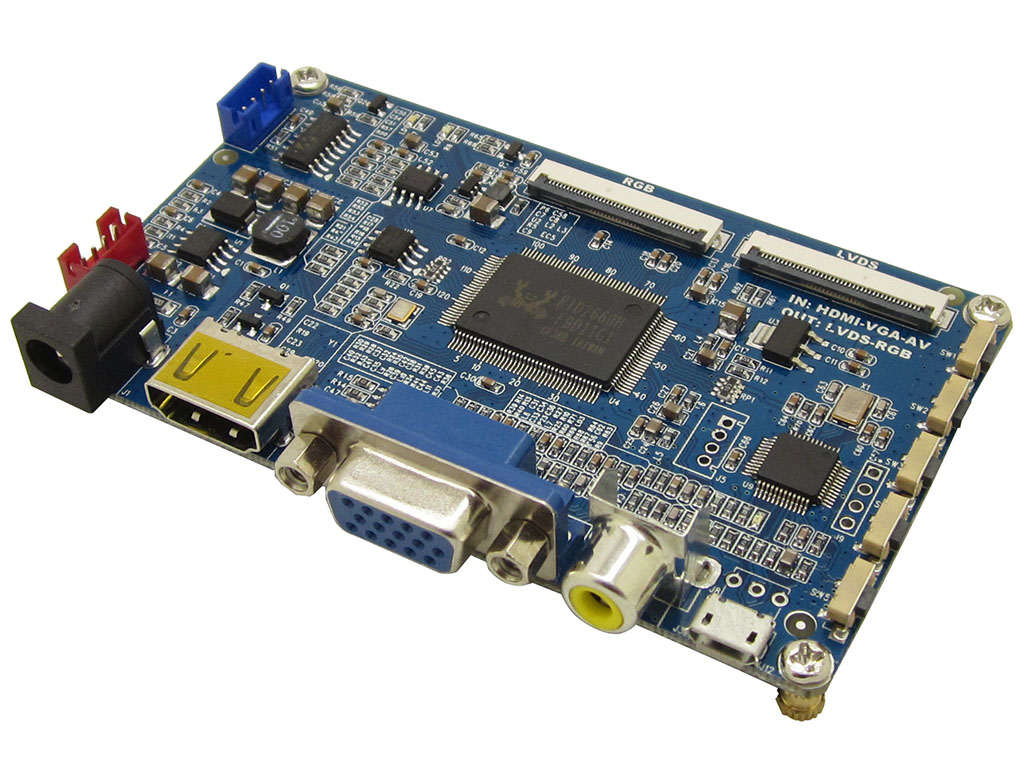

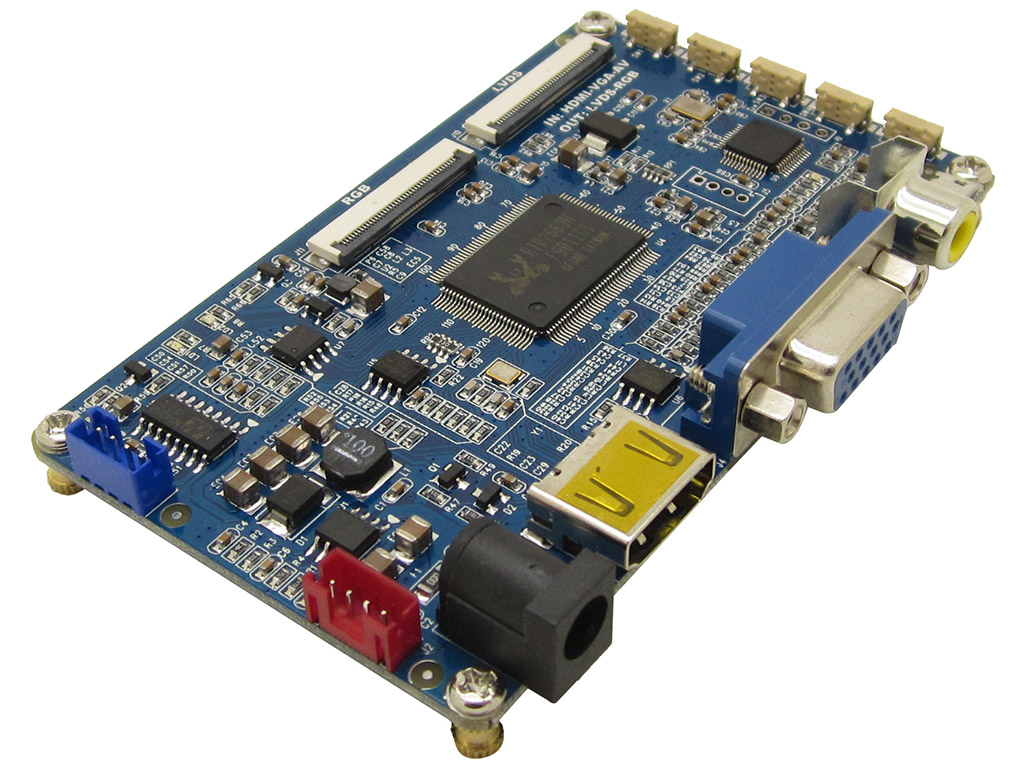

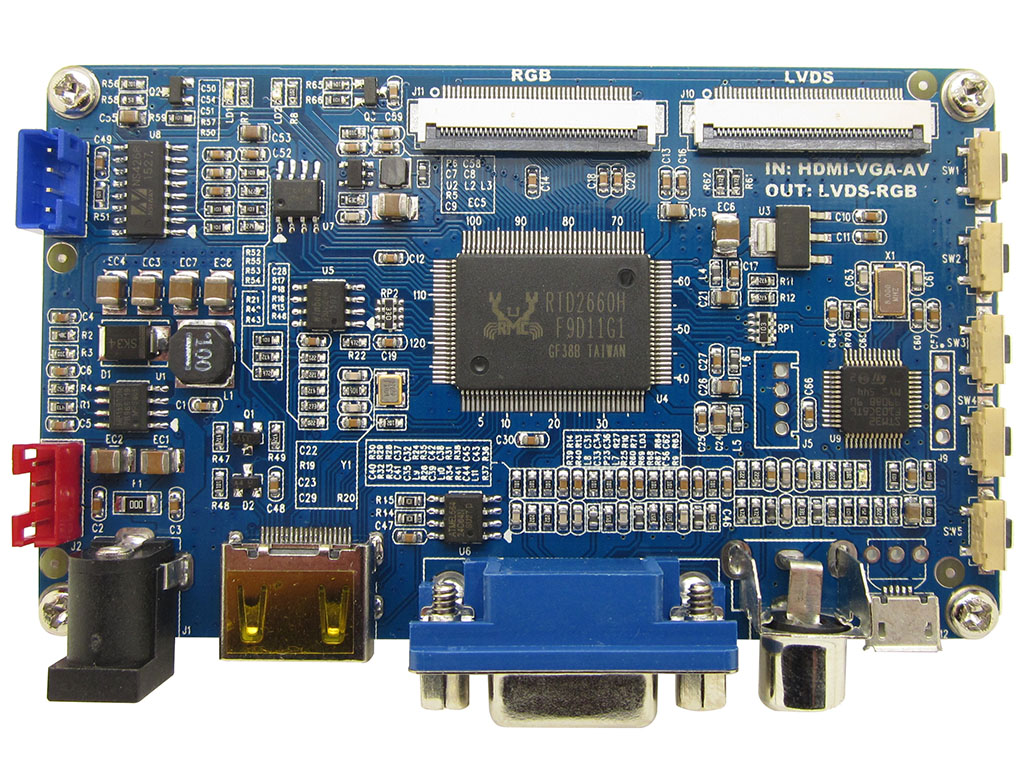

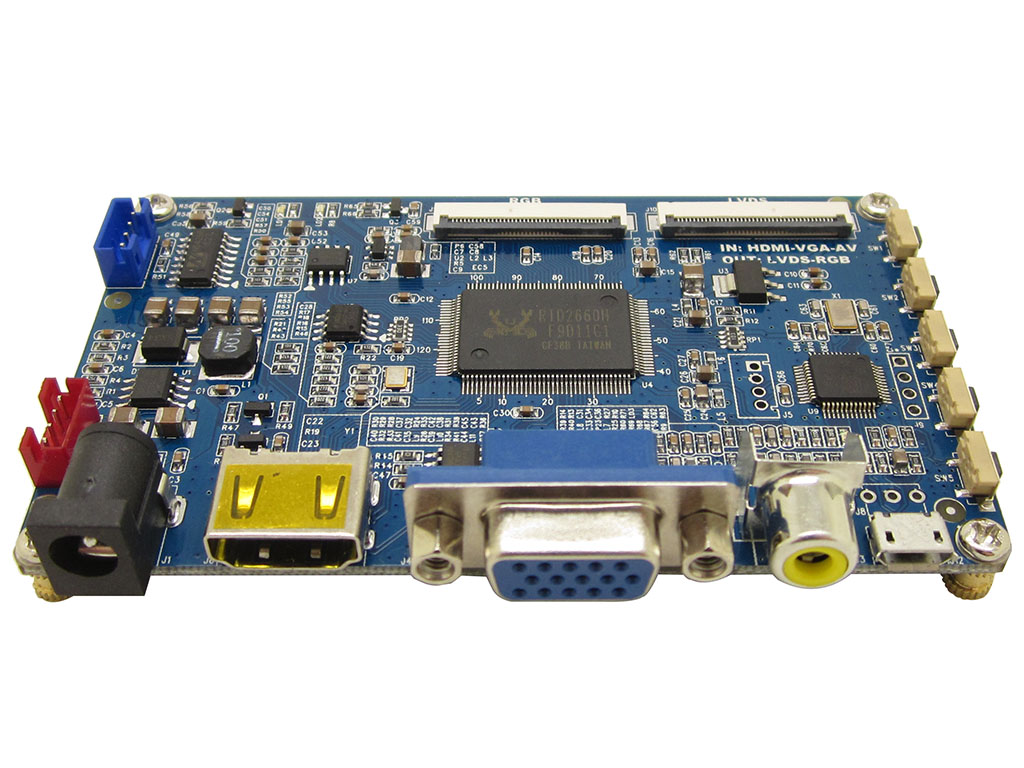

HDMI/VGA/AV RTD2660H Video Converter Board

Description

The board input can be work with HDMI, VGA or AV(CVBS). The HDMI, VGA and AV can be selected by the keypad. the input resolution is up to 1920x1080. it is very easy to use - simply connect a 5-24VDC adapter to the 2.1mm center-positive DC jack, it can works well with both TTL and LVDS screens, also support audio output.

Features

• Power voltage: 5V to 12V DC

• Video signal input: HDMI 1.2, VGA, AV(CVBS)

• OSD Language support: English, Chinese, Japanese, Korean, Spanish, French, German, Italian, Portuguese

• two 4Ω speakers output pins ( 2.0mm pitch )

• Max Resolution support 1920x1080

• standard keypad interface, Power, MENU, VOL+, VOL-,  Source , and two work indicate LED

• RGB/TTL Interface output support HY050CTP-HD(800x480), HY070CTP(800x480), HY070CTP-HD(1024x600), HY070CTP-HD-RGB(1024x600) , HY070CTP-HD-RGB IPS(1024x600), HY101CTP(1024x600)
• LVDS Interface output support HY101CTP(1024x600)

• Onboard USB device port support upgrade vedio firmware, and USB HID protocol for touch control ( capacitive touch )
  -Note: the vedio LVDS firmware and vedio TTL firmware cannot be working simultaneously, which means only one firmware can be selected at a time.

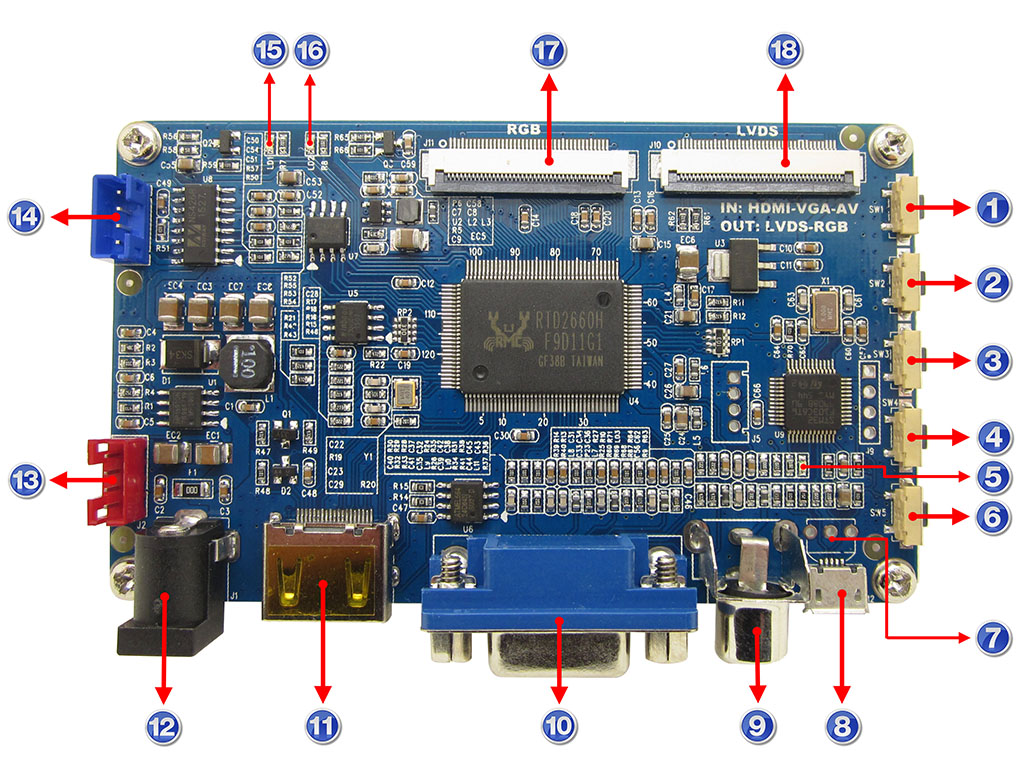

1. Keypad, Source
2. Keypad, VOL-
3. Keypad, VOL+
4. Keypad, MENU
5. Firmware upgrade indicate LED, and USB touch working LED
6. Keypad, Power
7. IR Remote (No welding IR receiver)
8. Onboard USB device Port
9. AV(CVBS) input
10. VGA inpout
11. HDMI input, support HDMI 1.2
12. Power supply 5V/1A input, 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug
13. Extra power input 4 pin 2.0mm pitch
14. speak output, 4 pin 2.0mm pitch
15. Vedio working indicate LED
16. Vedio standby indicate LED
17. RGB/TTL Interface, support HY050CTP-HD(800x480), HY070CTP(800x480), HY070CTP-HD(1024x600), HY070CTP-HD-RGB(1024x600) , HY070CTP-HD-RGB IPS(1024x600), HY101CTP(1024x600)
18. LVDS Interface, support HY101CTP(1024x600)

Package list

• RTD2660H Video Converter Board x1

Document

• Firmware

• wiki tutorial
