MarsBoard AM335X Development Board

US $74.90
Always Free Shipping
  • Model: MarsBoard AM335X
  • Shipping Weight: 98g
  • 189 Units in Stock

Description

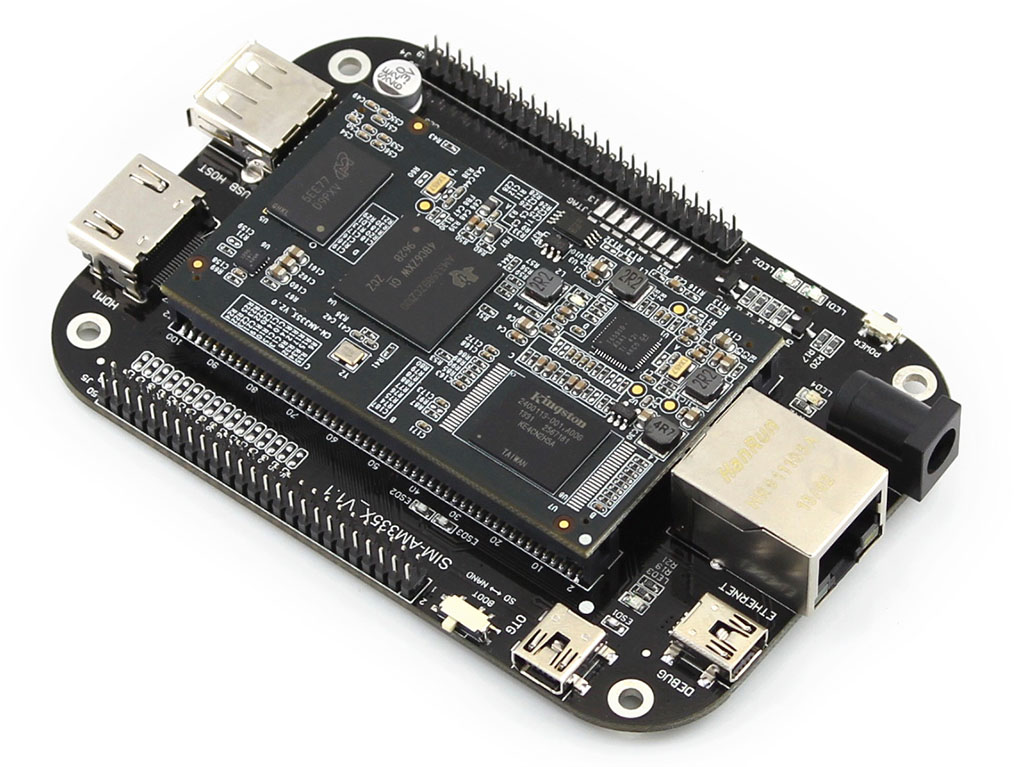

The MarsBoard AM335X is a flexible designed development board powered by the TI Cortex-A8 processor AM335X. It consists of CM-AM335X and SIM-AM335X, both of which are in pretty cool BLACK color.

The CM-AM335 is a CPU module based on AM335X, features 512MB DDR3, 4GB EMMC Flash, power management chip TPS65910, Ethernet PHY LAN8710A, and all the pins of AM335X are accessible on the two 2 x 50PIN expansion headers.

The SIM-AM335X is a base board/evaluation board designed for the CPU module, features HDMI interface, 10/100M Ethernet, USB-DEBUG, USB-OTG, USB-HOST, and TF card slot.

MarsBoard AM335X supports multi operating systems, provides an easy way for rapid product prototyping. What's more, the CPU module is separable and can be integrated into final product directly, this will greatly save your product development time.

Features

  1. TI ARM Cortex A8 @ 1Ghz + SGX530 3D Graphics Engine
  2. 512MB DDR3 SDRAM
  3. 4GB eMMC Flash
  4. Power Management Unit - TPS65910
  5. Power Indicator LED
  6. 10/100M Ethernet PHY - LAN8710A
  7. Expansion headers : two 50x2 pin, 1.27mm pitch

  1. HDMI type A socket
  2. TDA19988 LCD to HDMI converter
  3. 1 x USB 2.0 Host port
  4. JTAG interface (not soldered)
  5. mrcro SD card (TF card)socket, in bottom side
  6. User Indicator LED
  7. Power Indicator LED
  8. Reset button, in bottom side
  9. Power Supply - 5V/1A
  10. RJ45 10/100M Ethernet
  11. USB Debug port
  12. USB Debug indicator LED
  13. USB-OTG Port
  14. Boot selection
  15. CR1220 RTC Battery Holder
  16. CM-AM335X core board interface
  17. 2.0mm Expansion pin headers

Package content

  1. MarsBoard AM335X

Documents

 for more information, you can visit marsboard.com
