MarsBoard CM-T2 A20 Industrial Grade

US $42.00
Always Free Shipping
  • Model: CM-T2
  • Shipping Weight: 20g
  • 30 Units in Stock

Description

Allwinner T2 is completely compatible with Allwinner T2, T2 is more focused on industrial application, contrary to Allwinner T2 which targets consumer devices such as tablets and TV boxes.

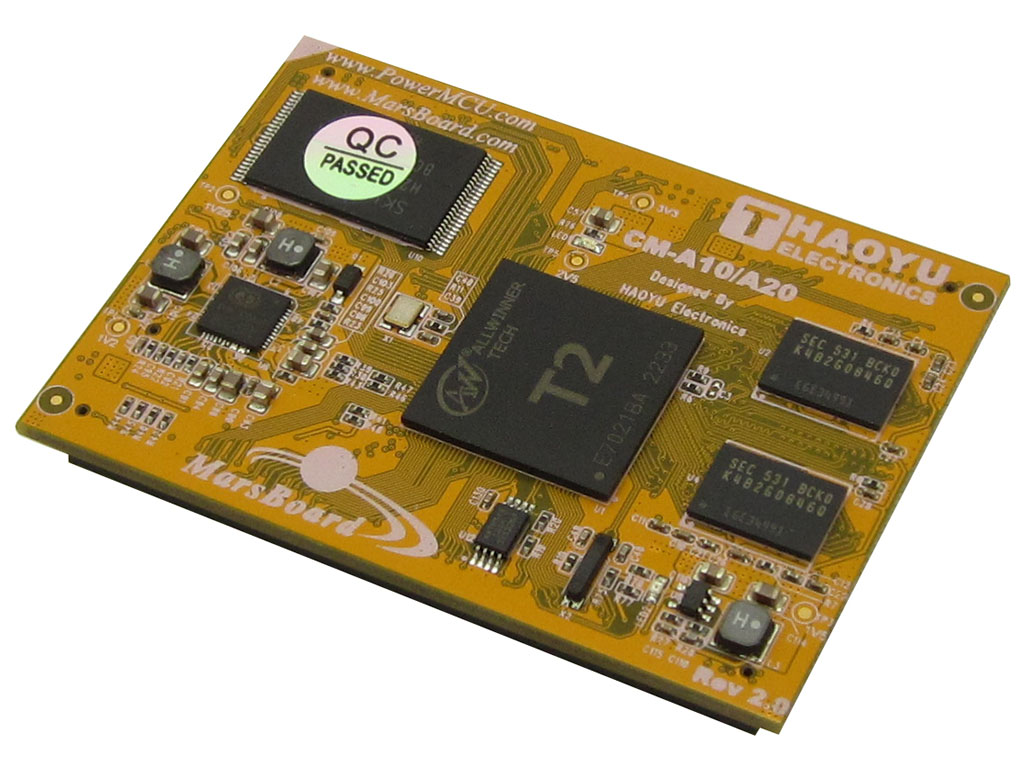

CM-T2 is System on Chip module, which contains Allwinner T2 Dual Core Cortex-A7 processor, Power managment Unit AXP209, Ethernet PHY LAN8710A, 1GB DDR3 memory and 8GB NAND Flash. All Allwinner T2 signals are available on 2 connectors x 100 pin and 1 connector x 40 pin with 1.27mm picth.

Features

  • SoC – AllWinner T2 ARM Cortex A7 Dual-Core CPU @ 1GHz + Mali-400 GPU
  • System Memory – 1GB DDR3 DRAM, up to 2GB DDR3 DRAM @ 480Mhz
  • Storage – 8GB Nand Flash
  • Ethernet – 10/100 Mbps
  • Connector - 2 connectors x 100pin, 1 connector x 40pin(No welding)
  • Size - 70 x 50mm

Features

  1. 1GB DDR3 SDRAM & 2GB DDR3 SDRAM
  2. TX indicator LED use for debug
  3. Power Management Unit - AXP209
  4. 8GB Nand Flash & eMMC FLASH
  5. Power Indicator LED
  6. Allwinner T2 ARM Cortex A7 Dual-Core @ 1Ghz + Mali-400 GPU
  7. 10/100M Ethernet PHY - LAN8710A
  8. J1, expansion 50x2 pin 1.27MM
  9. J3, expansion 20x2 pin 1.27MM
  10. J2, expansion 50x2 pin 1.27MM


Package content

  1. CM-T2

Documents

 for more information, you can visit marsboard.com
