Optical Smoke & Dust Sensor GP2Y1010AU0F

US $5.00
Always Free Shipping
  • Model: GP2Y1010AU0F
  • Shipping Weight: 22g
  • 95 Units in Stock

Description

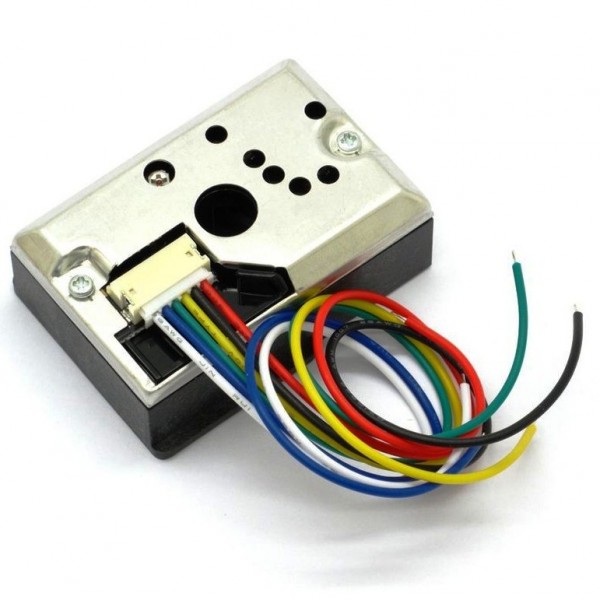

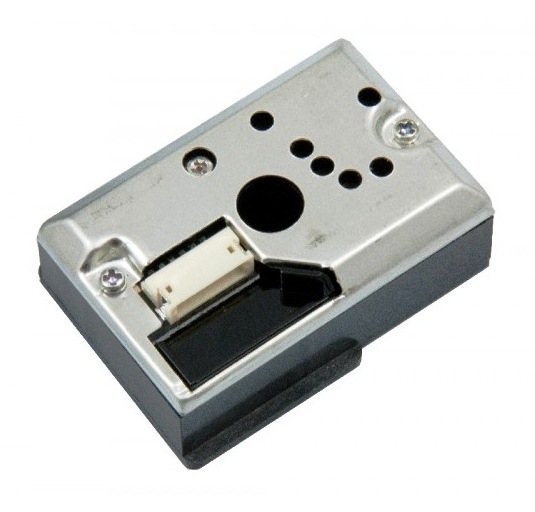

GP2Y1010AU0F is a commonly used Optical Dust Sensor in air purifier systems to detect very fine dust particles like cigarette smoke in air. It consists an infrared emitter and a phototransistor which are diagonally arranged to detect reflected light from dust. The sensor is very compact and has a very low current consumption. By using this module we can easily detect the presence of dust by the photometry of only one pulse. It can also distinguish smoke from house dust by pulse pattern of output voltage.

Features

  • Very compact size
  • Low power consumption
  • RoHS complaint and lead free
  • Can distinguish between smoke and dust
  • Dust can be detected even by a single pulse

Specifications

  • Operating Voltage : 5V
  • Max. Current : 20mA
  • Operating Temperature : -10 ~ +65°C

Internal Schematic


GP2Y1010AU0F Optical Dust Sensor - Internal Schematic

Applications

  • Air Dust Detection
  • Air Purifiers
  • Air Conditioners
  • Air Monitors

Document
