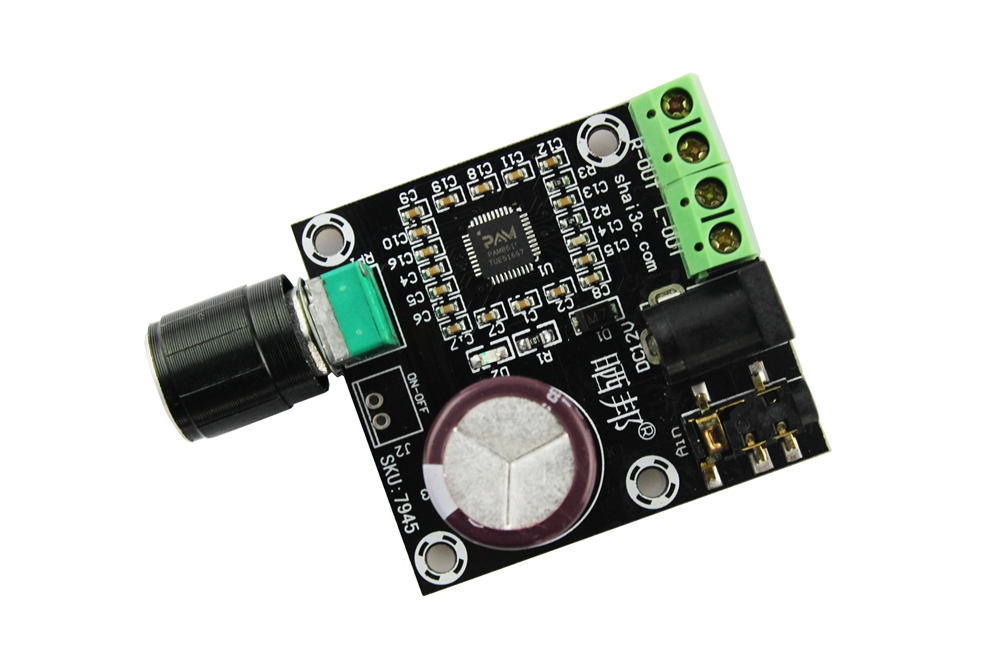

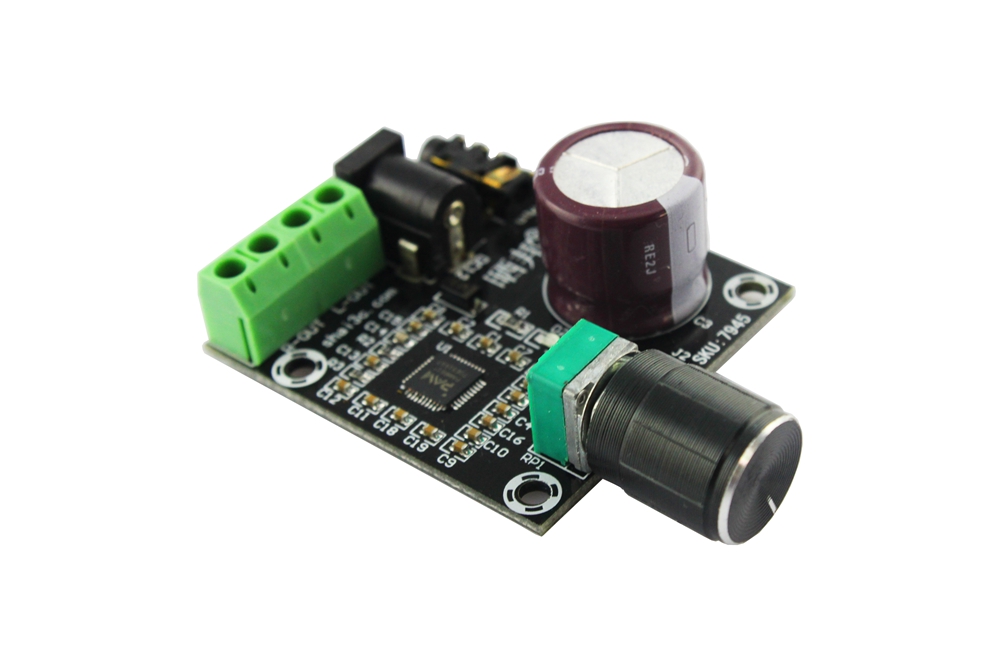

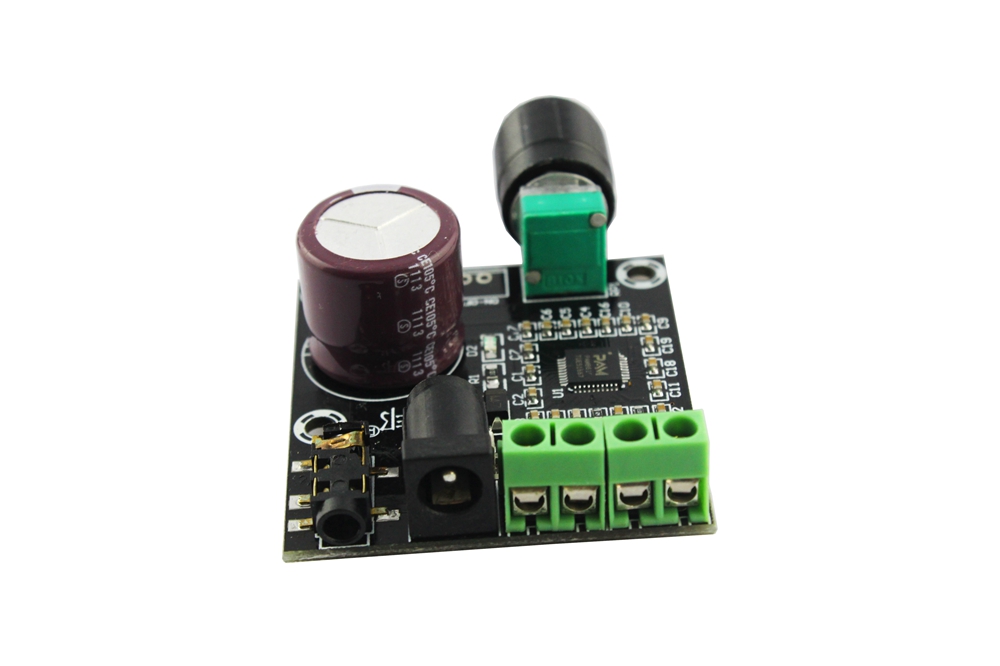

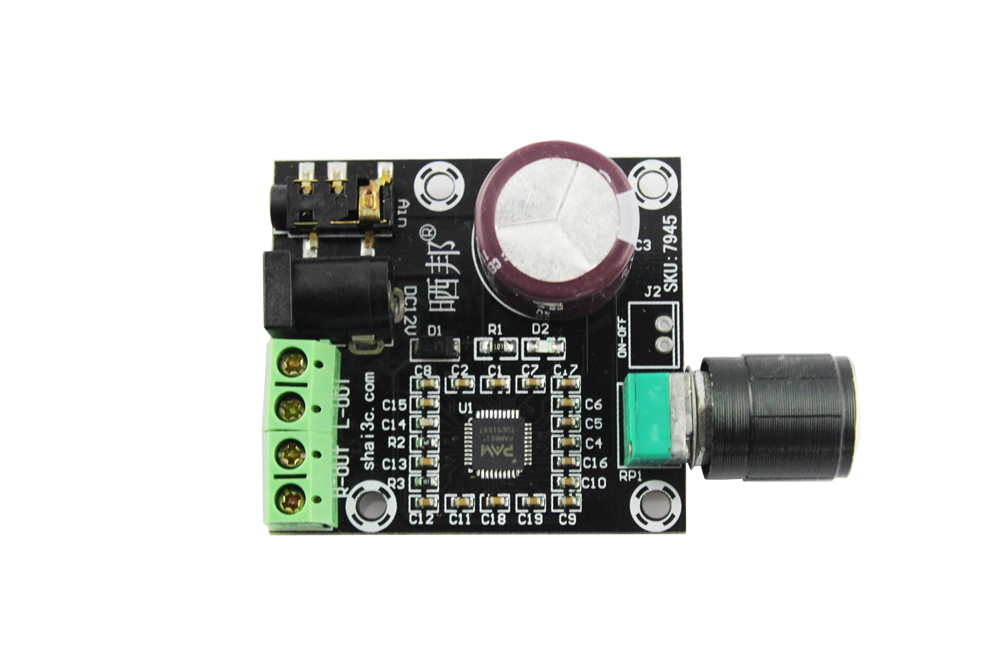

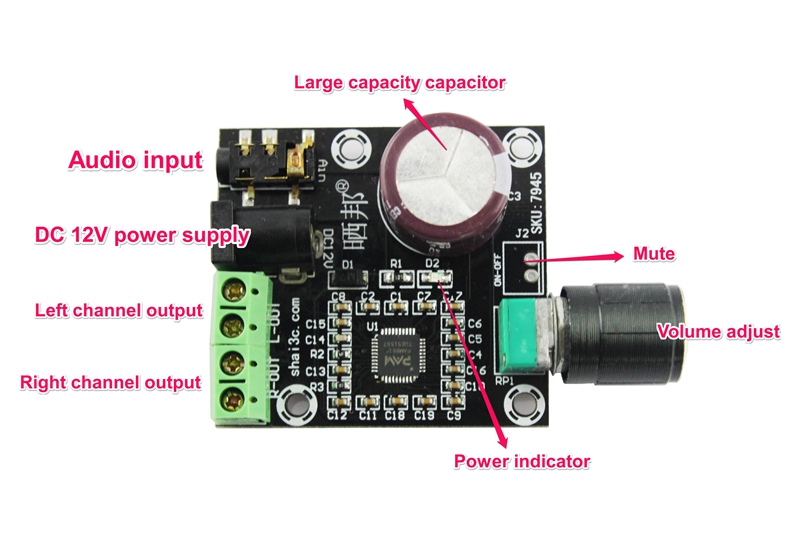

PAM8610 15W*2 Dual Channel 12V Digital Audio Amplifier Module

US $3.00
Always Free Shipping
  • Model: PAM8610-Audio-Amplifier-Module
  • Shipping Weight: 24g
  • 83 Units in Stock

Description

A new efficient digital power amplifier, the PAM8610 is a 15W, class-D audio amplifier. It offers low THD+N, allowing it to achieve high quality sound reproduction. The new filter less architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus to save the system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8610 is much better than that of class-AB. It can extend the battery life, ideal for portable applications.

Features

  • Model: XH ~ M120/li>
  • Work: Class D (PWM modulation)
  • Chip selection: PAM8610
  • Scope of supply: DC6 ~ 15V
  • Keep pushing Voltage: DC12V
  • Output Power: 15W * 2
  • Channel Type: Dual Channel
  • SNR:90dB
  • Frequency response:20Hz-15KHZ
  • Quiescent current:20MA(DC 12V)
  • Recommend Speaker:10-100W
  • Input Impedance:20M
  • Harmonic distortion<0.1%
  • Dimensions: 43mm x 47mm

Package list

  • PAM8610 15W*2 Dual Channel 12V Digital Audio Amplifier Module x 1
