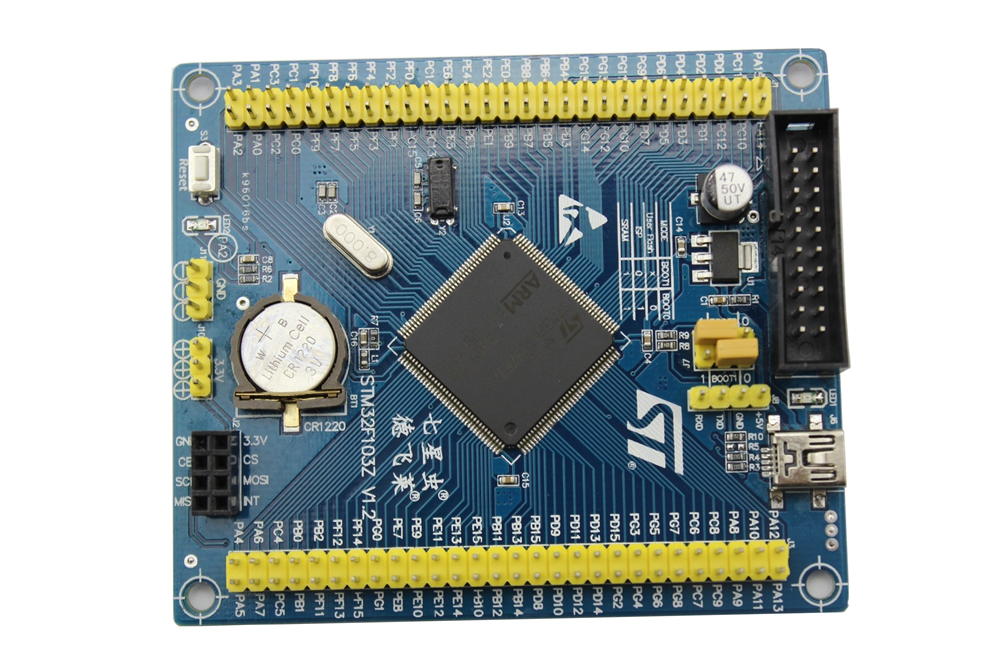

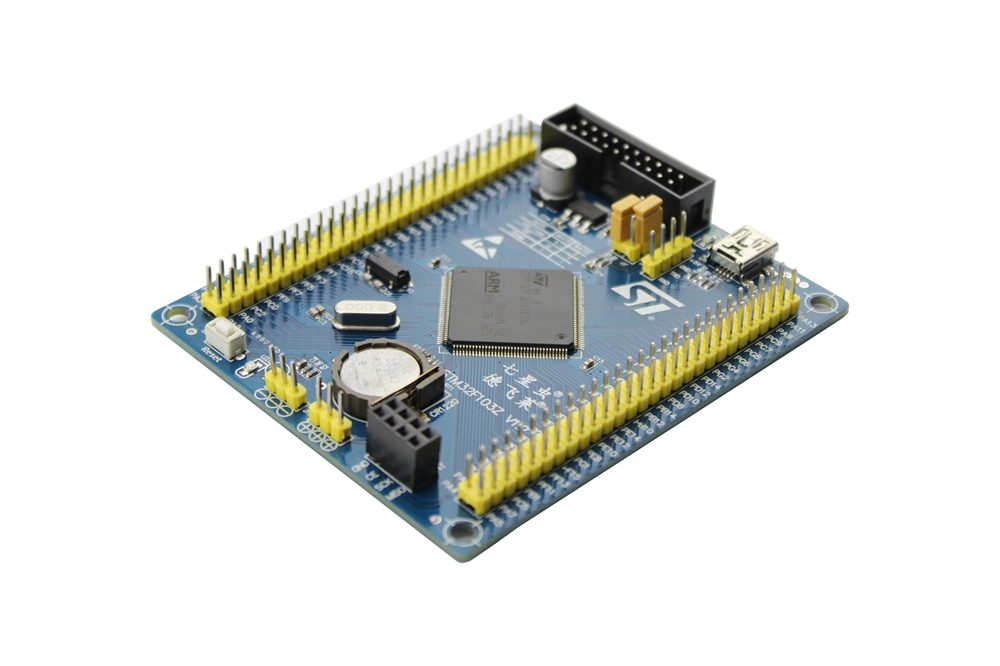

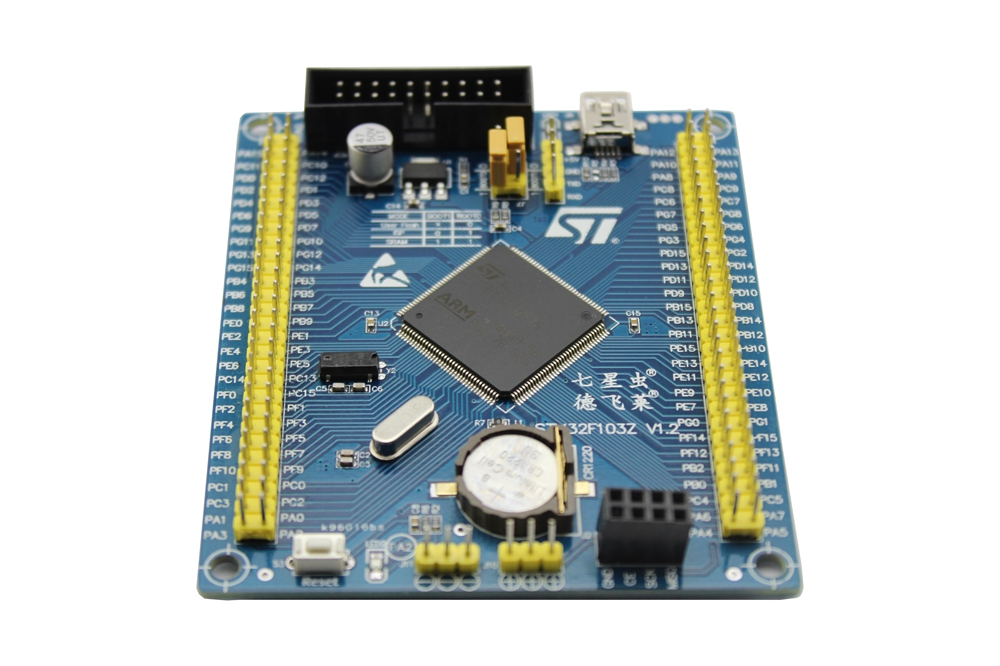

STM32F103ZET6 Minimum System Board

US $16.00
Always Free Shipping
  • Model: STM32F103ZET6-Mini
  • Shipping Weight: 38g
  • 95 Units in Stock

Description

The STM32F103ZET6 performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN. The STM32F103ZET6 operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. These features make the STM32F103ZET6 high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC. The development board of STM32F103ZET6 provide convenience to your development work. It’s cheap and nice appearance.

Features

  • Core: ARM® 32-bit Cortex®-M3 CPU
  • all pin leads, and marked with the port number for easy expansion
  • BOOT cap jump start mode switching , the use of official development board mode ST
  • 1 -way power indicator
  • 1 road work light for summary presentation
  • the standard 20-pin JTAG socket
  • 8 M crystal work , the official parameters of the chip internal PLL frequency multiplier , the maximum chip frequency 72M
  • 32768 Hz watch crystal , black 4 -pin crystal oscillator stable than the cylinder .
  • CR1220 battery holder a clock with battery backup.
  • 1 reset button , provides hardware external reset feature
  • pin power extension provides 3.3V power output, convenient to the peripheral power
  • a ASM1117-3.3 regulator provides 3.3V power supply for motherboard’ work
  • 1 external pin serial port , you can directly download the program by serial TTL module with the voltage of 3.3V or 5V.
  • the wireless communication module RF24L01 socket, can be equipped with a wireless module. Buy two development boards and two wireless modules can communicate
  • a USB port , you can use the port to board power supply. You can also use this port USB functions , such as make USB mouse function , card reader , USB port analog functions , these functions need to have in order to achieve supporting peripherals , ST has a corresponding routines and official information , please download this product makes the extended peripherals corresponding technical support

Specifications

  • PCB size : 85x75mm
  • Chip Pin Count : 144P
  • Operating Frequency: 72 MHz
  • 16-bit timer 4
  • Voltage (V) :2 to 3.6
  • RAM (Bytes) :64 K
  • Program Memory Type: Flash
  • Prog. (Bytes) 512 K

Package list

  • STM32F103Z R1.1 core board(DOES NOT CONTAIN BATTERY) x 1
