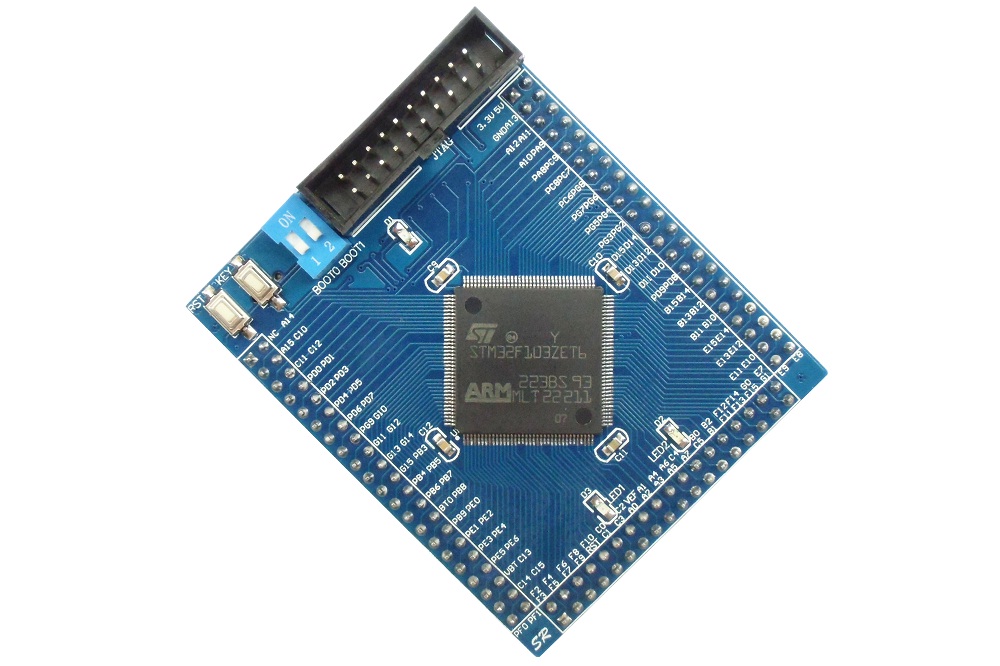

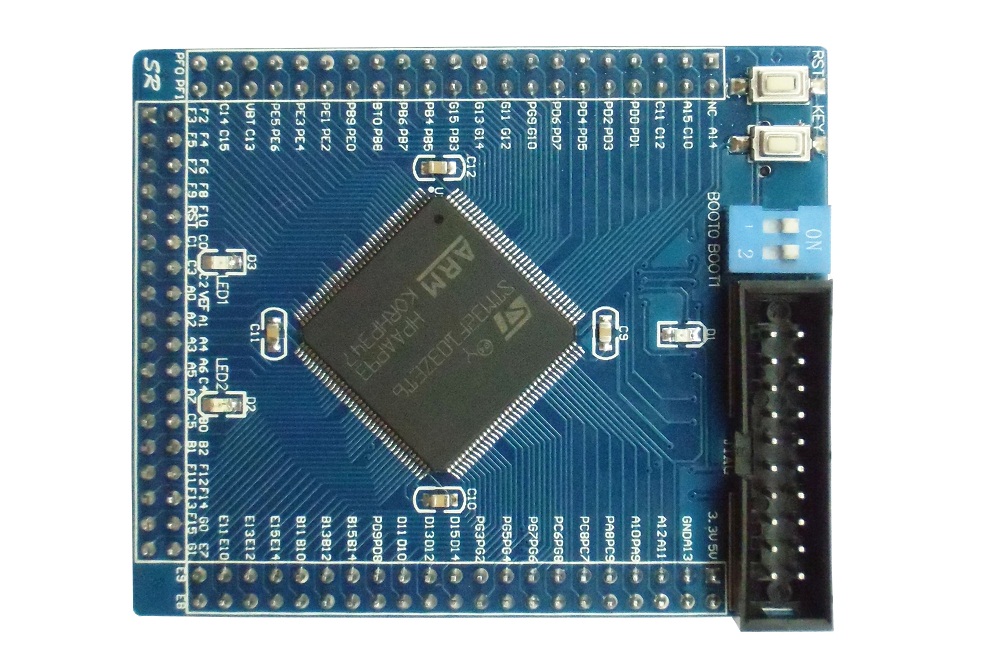

STM32F103ZET6 Minimum System Board

US $14.50
Always Free Shipping
  • Model: STM32F103ZET6-Mini-A
  • Shipping Weight: 35g
  • 98 Units in Stock

Description

    This board is a small STM32 development board that features an STM32F103ZET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.
     As a minimal ready-to-run system, this board integrates USB communication interface, JTAG/SWD programming/debugging interface, boot mode selection and so on to take you into the ARMCortex world

Resources On board

  • Core: STM32F103ZET6 , Cortex-M3 32-bit RISC, LQFP144
  • Operating Frequency: 72MHz, 1.25 DMIPS/MHz
  • 2 On-board LED Indicator (PB0& PC0) and 1 Button
  • Boot Mode Selector, for configuring BOOT0 pin
  • Power indicator
  • Reset Button
  • USB Interface: for establishing USB communication between PC and the STM32 development board
  • 3V3 Voltage Regulator
  • JTAG Interface, for debugging/programming
  • Nand Flash& EEPROM Expander(K9F1GO8U0D and AT24C02 suggested)
  • 8M Main Crystal and 32.768K crystal for internal RTC
  • MCU Breakout for further expansion and projects
