10.1" inch 1024x600 TFT LCD Display with capacitive touch panel

US $58.00
Always Free Shipping
  • Model: HY101CTP
  • Shipping Weight: 500g
  • 910 Units in Stock

Description

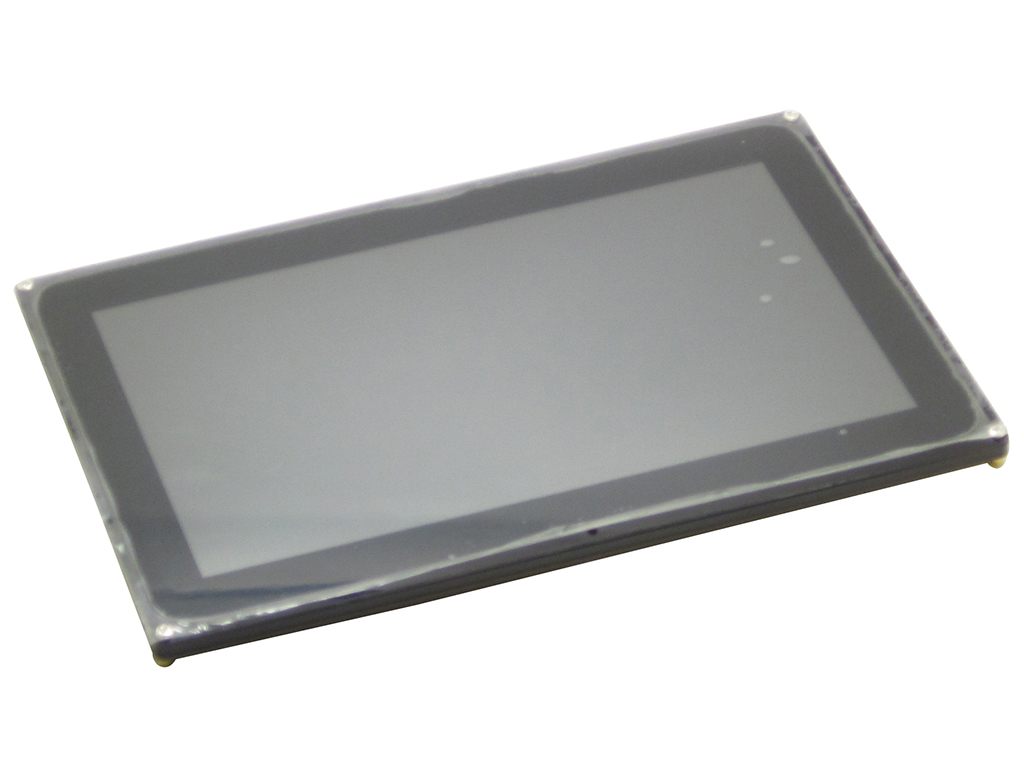

The HY101CTP 10.1 inch LCD Module is designed to work with HAOYU Electronics's ARM development boards and MarsBoard's single board computers. It has one 10.1 inch TFT LCD including capacitive touch screen with 1024 by 600 pixels resolution.

Features

LCD size 10.1 inch(Diagonal)
Touch Screen Controller FT5406
LCD Type TFT
Resolution 1024 × 3 (RGB) × 600
Backlight LED
Interface type RGB
LVDS
Active area 222.72 x 125.28 mm

RGB Pin Assignment

PIN NO Symbol I/O Function
40 BLVDD Power Backlight power supply connect 5V
39 BLVDD Power Backlight power supply connect 5V
38 GND Power Power ground
37 VDD Power Power supply voltage connect 3.3V
36 R0 Input Red data (LSB)
35 R1 Input Red data
34 R2 Input Red data
33 R3 Input Red data
32 R4 Input Red data
31 R5 Input Red data
30 R6 Input Red data
29 R7 Input Red data (MSB)
28 G0 Input Green data (LSB)
27 G1 Input Green data
26 G2 Input Green data
25 G3 Input Green data
24 G4 Input Green data
23 G5 Input Green data
22 G6 Input Green data
21 G7 Input Green data (MSB)
20 B0 Input Blue data (LSB)
19 B1 Input Blue data
18 B2 Input Blue data
17 B3 Input Blue data
16 B4 Input Blue data
15 B5 Input Blue data
14 B6 Input Blue data
13 B7 Input Blue data (MSB)
12 GND Power Power ground
11 PCLK Input Pixel clock
10 LCD-BL-EN Input LCD backlight on/off, On=1; Off = 0;
9 HSYNC Input Horizontal Sync Signal
8 VSYNC Input Vertical Sync Signal
7 DE Input Data Enable
6 LCD-BL-ADJ Input LCD backlight Control (PWM control)
5 GND Power Power ground
4 CTP-SDA Input/Output CTP I2C SDA
3 CTP-SCL Input CTP I2C SCL
2 CTP-RST Input CTP Reset input
1 CTP-INT Output CTP Interrupt output

LVDS Pin Assignment

PIN NO Symbol I/O Function
1 BL3-VDD_5V Power Backlight power supply connect 5V
2 BL2-VDD_5V Power Backlight power supply connect 5V
3 BL1-VDD_5V Power Backlight power supply connect 5V
4 NC   No Connector
5 LCD-BL-EN Input LCD backlight on/off,  On=1;Off = 0;
6 LCD-BL-ADJ Input LCD PWM backlight control
7 NC   No Connector
8 BL3-GND Power Backlight Power ground
9 BL2-GND Power Backlight Power ground
10 BL1-GND Power Backlight Power ground
11 CTP-RST Input CTP reset input
12 CTP-INT Output CTP interrupt output
13 GND7 Power Power ground
14 NC   No Connector
15 NC   No Connector
16 GND6 Power Power ground
17 NC   No Connector
18 NC   No Connector
19 GND5 Power Power ground
20 LVDS-D3P Input LVDS differential data input
21 LVDS-D3N Input LVDS differential data input
22 GND4 Power Power ground
23 LVDS-CLKP Input LVDS differential clock input
24 LVDS-CLKN Input LVDS differential clock input
25 GND3 Power Power ground
26 LVDS-D2P Input LVDS differential data input
27 LVDS-D2N Input LVDS differential data input
28 GND2 Power Power ground
29 LVDS-D1P Input LVDS differential data input
30 LVDS-D1N Input LVDS differential data input
31 GND1 Power Power ground
32 LVDS-D0P Input LVDS differential data input
33 LVDS-D0N Input LVDS differential data input
34 CTP-SDA Input/Output CTP I2C SDA
35 CTP-SCL Input CTP I2C SCL
36 NC   No Connector
37 VDD3 Power Power voltage connect 3.3V
38 VDD2 Power Power voltage connect 3.3V
39 VDD1 Power Power voltage connect 3.3V
40 NC   No Connector

Hardware Specifications

RGB signal interface is compatible with  HY050CTP-HD, HY070CTP, HY070CTP-HD, LVDS signal interface different with HY070CTP-HD.

Software Specifications

LCD display timing is compatible with HY070CTP-HD, capacitive touch driver compatible with HY050CTP-HD, HY070CTP, HY070CTP-HD,  but HY101CTP capacitive touch Y axis polarity different with HY070CTP-HD.

Package content

  • 1 x HY101CTP
  • 1 x 40 pin connect cable

Documents

HY101CTP LCD DataSheet.pdf
ft5x06 source code application and LCD Timing V2.0
FT5x06 DataSheet V4.0.pdf
HY101CTP Dimension.dxf
HY_LCD_Reference Design.pdf
