Micro SD(TF) Card Breakout Module

US $1.00
Always Free Shipping
  • Model: HY-MicroSD Module
  • Shipping Weight: 2g
  • 1896 Units in Stock

Description

This is a Micro SD(TF) card breakout board, and it will allow you to breakout the MMC socket to a 2.54mm standard 2 x 5-pin header. It is compatible with TF SD card (commonly used in Mobile Phone) which is the most tiny card in the market. It can work with 5V power supply, and both 5V/3.3V IO operation level. It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and MSP430.

Features

  • 5v power supply
  • PWN power control PIN, low voltage disable the power supply.
  • 3.3v and 5v logical voltage compatible
  • strandard 2.54mm 2 x 5 pin headers breakout

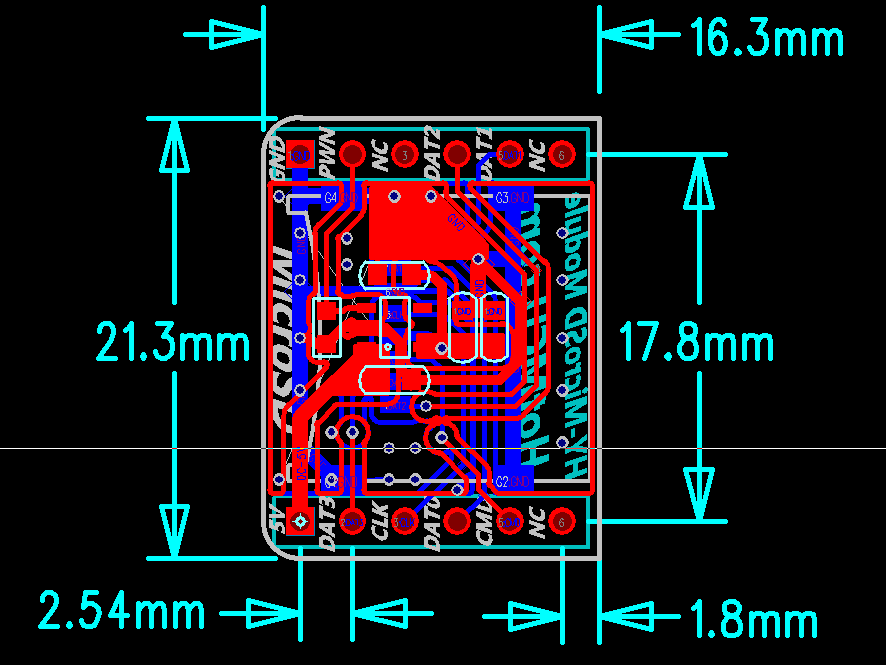

  • Dimensions: 21.3mm * 16.3mm

Shipping List

  • 1 x HY-MicroSD Module

Documents
