SSD1306 0.96" 128×64 OLED Display – I2C/SPI Interface

US $7.00
Always Free Shipping
  • Model: SSD1306-0.96
  • Shipping Weight: 8g
  • 14 Units in Stock

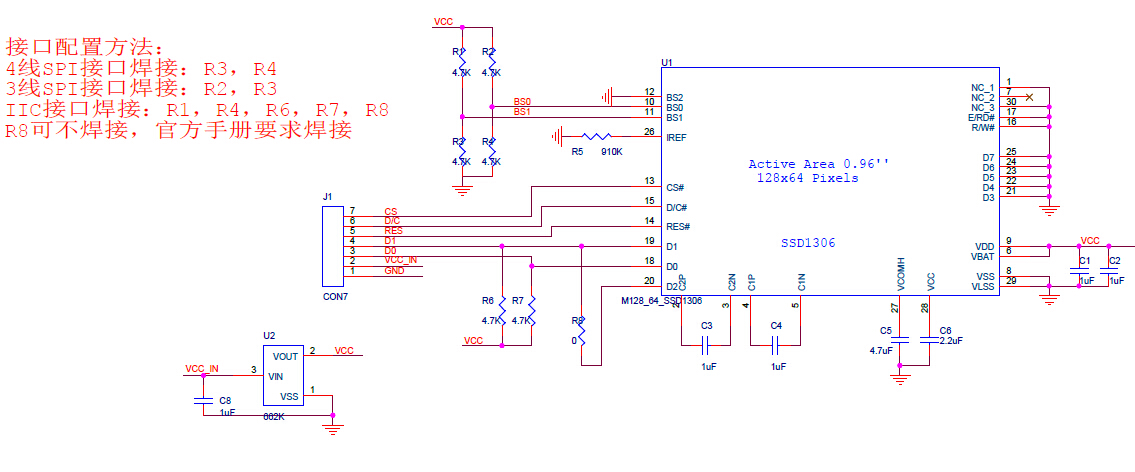

Tiny 128×64 is a OLED Display based on SSD1306 Display controller chip. The display is mounted on an easy to solder PCB. The SSD1306 Display interfaces to microcontrollers through a I2C/SPI interface.

Technical Specifications

  • OLED Technology, Self-luminous, need no back-light (consumes less energy)
  • High resolution: 128 * 64
  • Viewing angle:> 160 degree
  • Supports various microcontrollers: Fully compatible with Raspberry Pi, Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
  • Ultra-low power consumption: full screen lit 0.08W
  • Operating Voltage: 3.3V Nominal (3.3-6V)
  • Compatible I/O level: 3.3V / 5V
  • Working Temperature: :-30 ~70 celcius
  • Driver IC: SSD1306

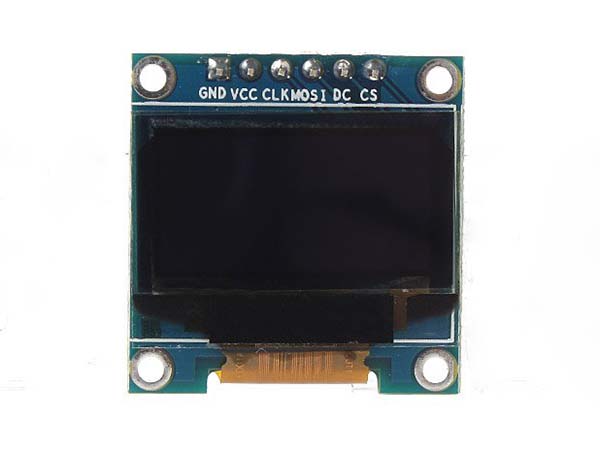

  • GND: Ground
  • VCC: Voltage at the common collector
  • CLK: Data clock pin
  • MOSI: Master output, slave input
  • DC: Data/command selection pin
  • CS: Chip selection pin


Firmware Library (u8glib)

Important Note

 Make sure you are correctly setting the contrast value of the LCD (by writing to command register ) or you will be able to see very dim or nothing at all on the LCD.When you are using u8glib, please make sure that you un-comment following statement:
//U8GLIB_SSD1306_128X32 u8g(U8G_I2C_OPT_NONE);// I2C / TWI
