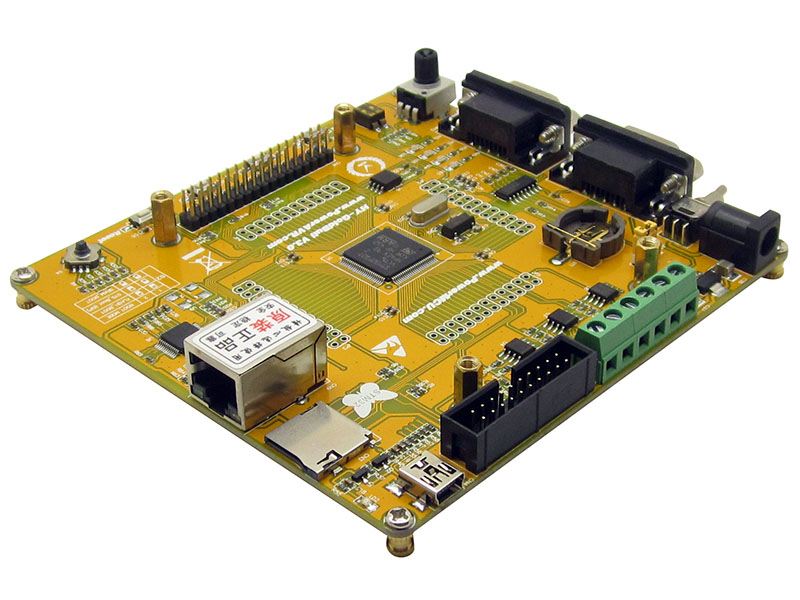

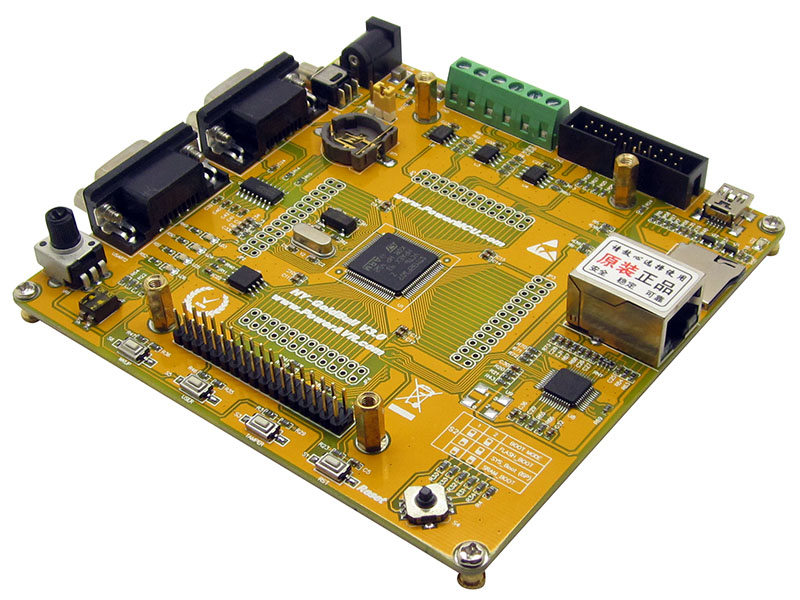

STM32F107VCT6 Development Board

US $25.00
Always Free Shipping
  • Model: HY-GoldBull-V3
  • Shipping Weight: 140g
  • 162 Units in Stock

Description

The STM32F107 Development Board introduces the ST STM32F107VCT6 family of ARM Cortex-M3 processor-based devices, allowing you to create and test working programs for this advanced architecture. The Board has a wide range of interfaces making it a great starting point for your next Cortex-M3 project.

Features

  • 72MHz STM32F107VCT6 ARM Cortex-M3 processor-based MCU in 100-pin LQFP
  • On-Chip Memory: 256KB Flash & 64KB RAM
  • On board 16 MBit Flash with SPI interface (SST25VF016B)
  • On board 2 KBit EEPROM with I2C interface (24LC02)
  • 10/100 Ethernet Port
  • USB-OTG Support USB Slave, USB Host ( Mini-USB type A interface)
  • 3.2 inch Color QVGA TFT LCD Touch Screen ( option )
  • 2 Serial Ports
  • 2 CAN Bus Interface Ports
  • Micro SD Card Interface
  • 5-position Joystick and 4-button (Wakeup, User, Tamper, Reset)
  • Analog Voltage Control for ADC Input
  • Extension port connectors for many of microcontrollers pins
  • RTC support
  •  Four status leds
  • 2x10 Pin JTAG Connector
  • On-Board 3.3V Regulator, 5V input

Shipping List

  • 1 x STM32F107VCT6 Development Board
  • 1 x Mini-USB type A to USB type A Female cable
  • 1 x Software and Example Code CDROM
