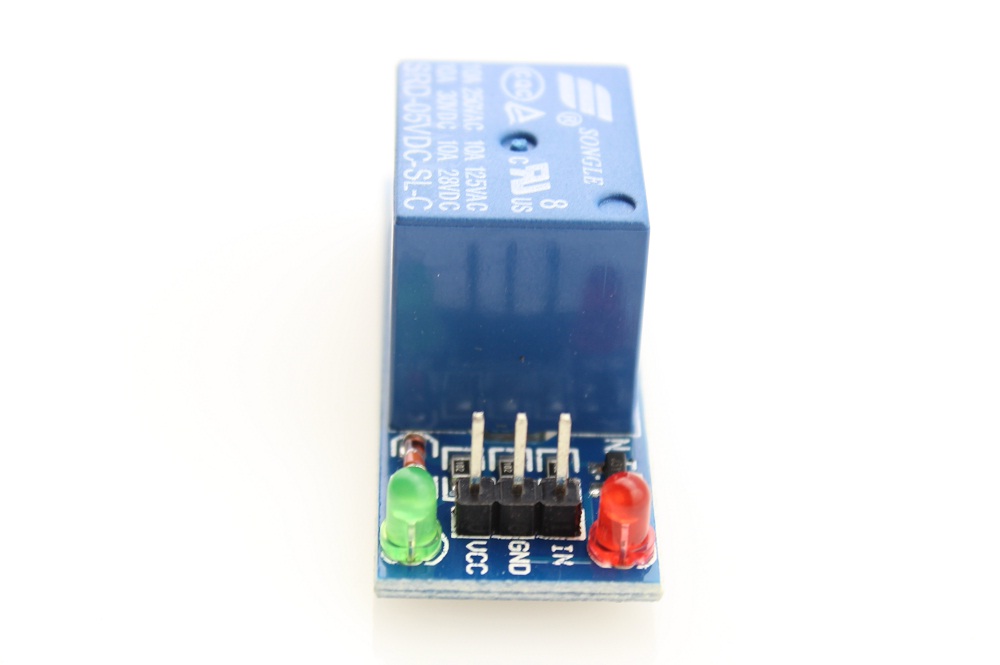

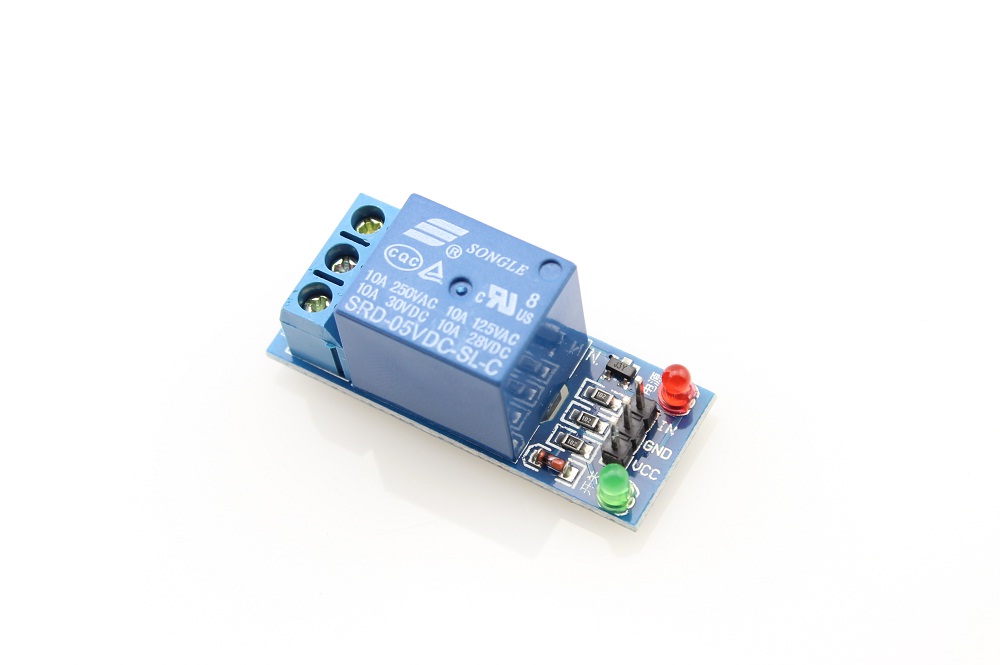

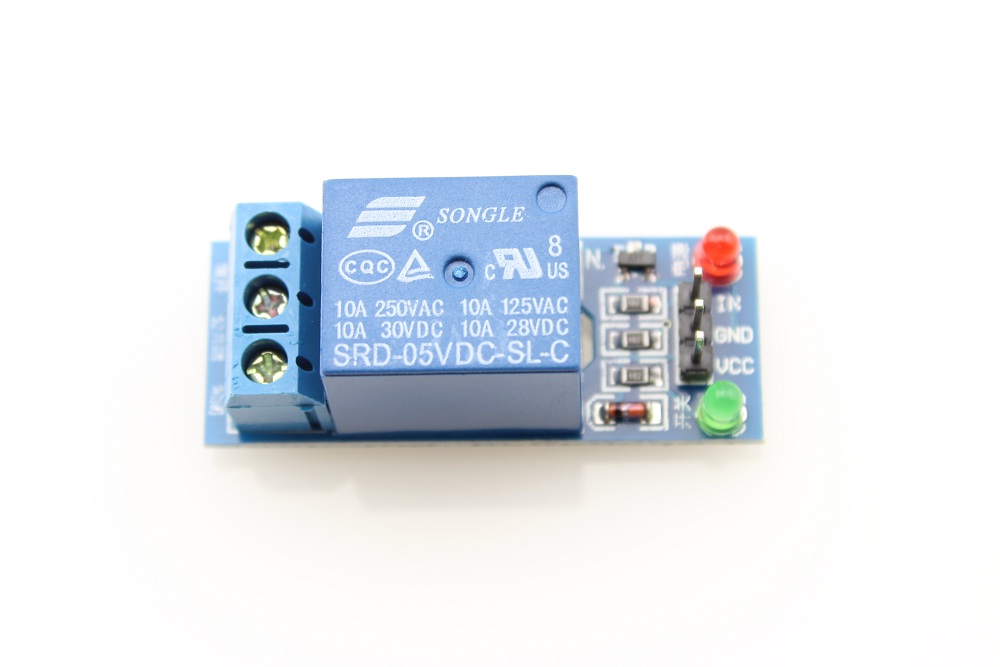

1-Channel Relay Module-10A

US $1.10
Always Free Shipping
  • Model: One-Relay-Module
  • Shipping Weight: 30g
  • 85 Units in Stock

Description

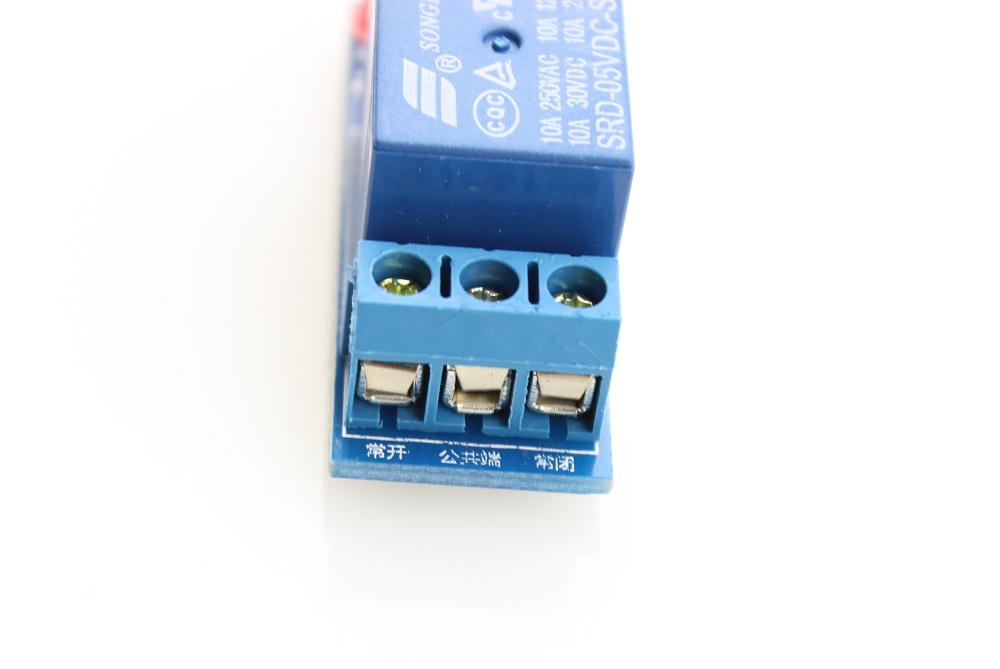

A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.


Why do we want to use a relay and do we really need to? Anytime you want to switch on/off a device which draws more current or works with a high voltage, you'll need to use a relay, such as controlling of headlights, parking lights, horns, etc. There are also the 2-Channel Relay Module and 4-Channel Relay Module for your option. Please Note that Connect the VCC to JD-VCC with the jumper when using.

Specification

  • Control Voltage: 5V DC
  • High Input voltage trigger & Low Input voltage trigger
  • On-board LED to indicate the working status
  • Max Control Capacity:10A@250VAC or 10A@30VDC
