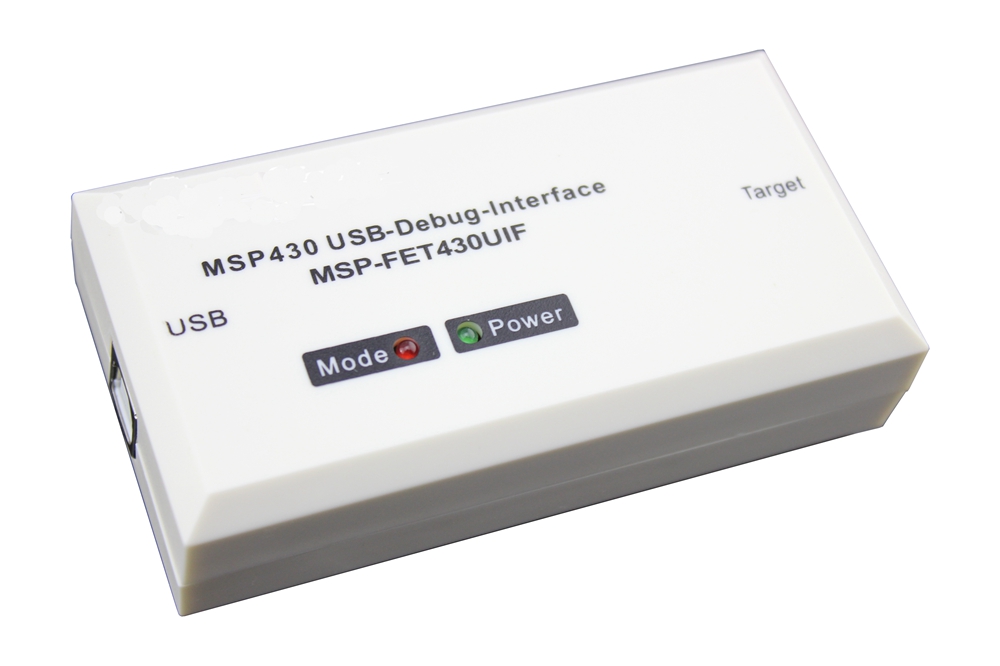

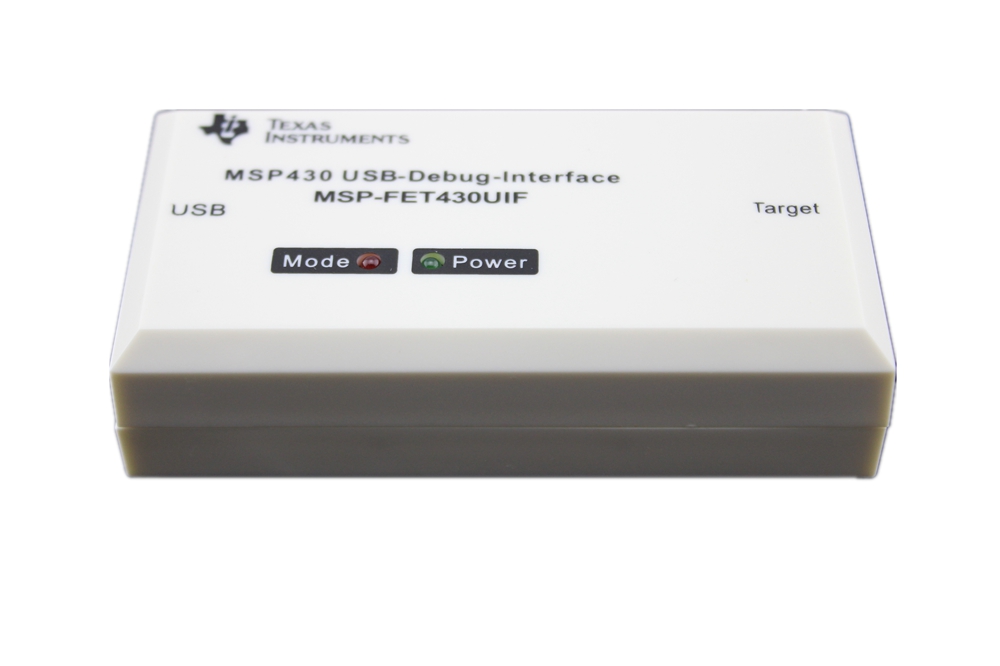

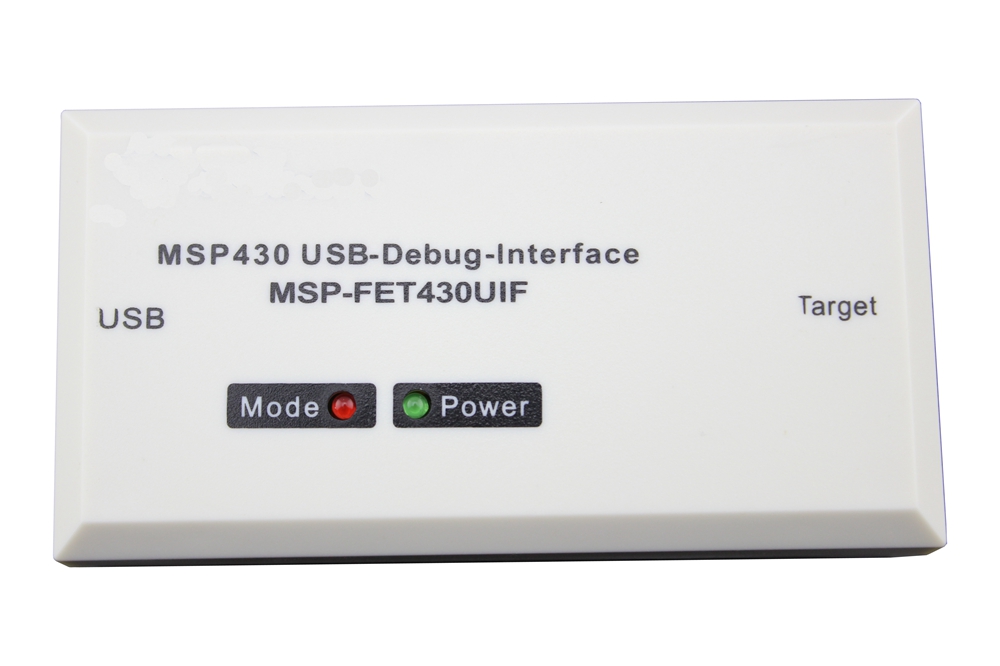

The MSP-FET430UIF is a powerful flash emulation tool to quickly begin application development on the MSP430 MCU. It includes USB debugging interface used to program and debug the MSP430 in-system through the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The flash memory can be erased and programmed in seconds with only a few keystrokes, and since the MSP430 flash is ultra-low power, no external power supply is required. The debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start your design immediately. The MSP-FET430UIF development tools supports development with all MSP430 flash devices.
- USB debugging interface (MSP-FET430UIF) connects a flash-based MSP430 MCU to a PC for real-time, in-system programming and debugging
- Supports JTAG Security Fuse blow to protect code
- Supports all MSP430 boards with JTAG header

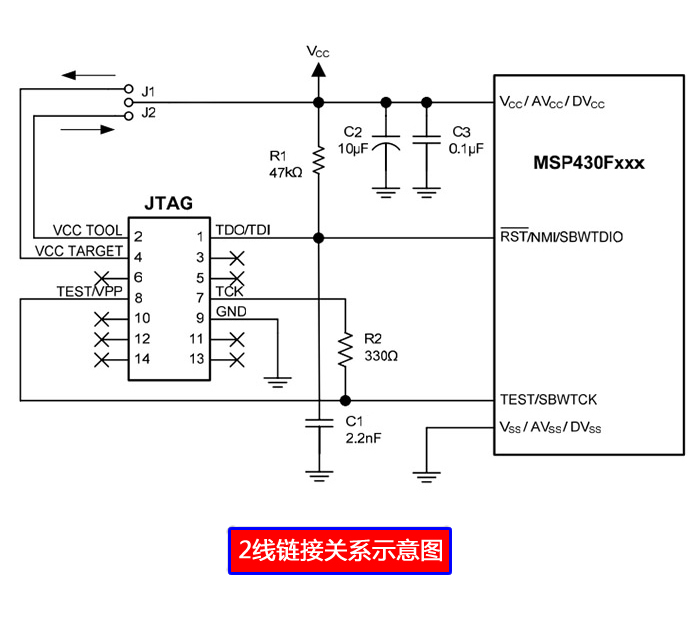

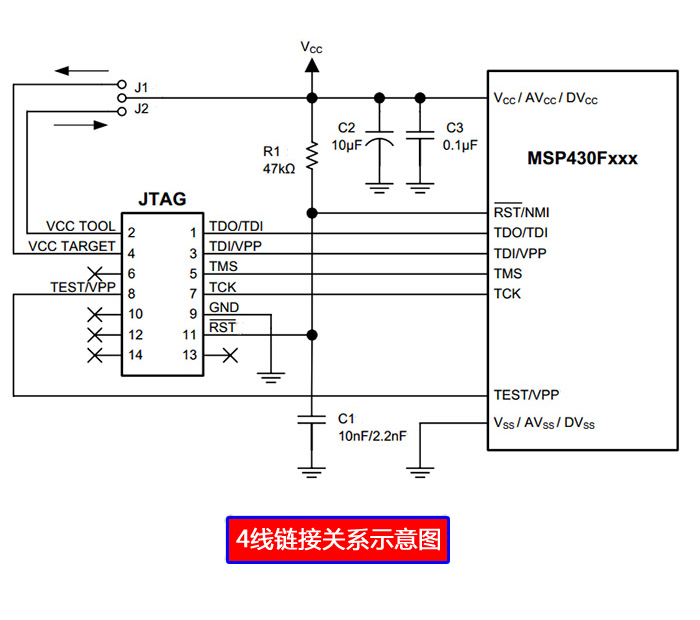

- Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols
- 14-conductor cable x 1
- MSP-FET430UIF interface module x 1
- USB Cable x 1
