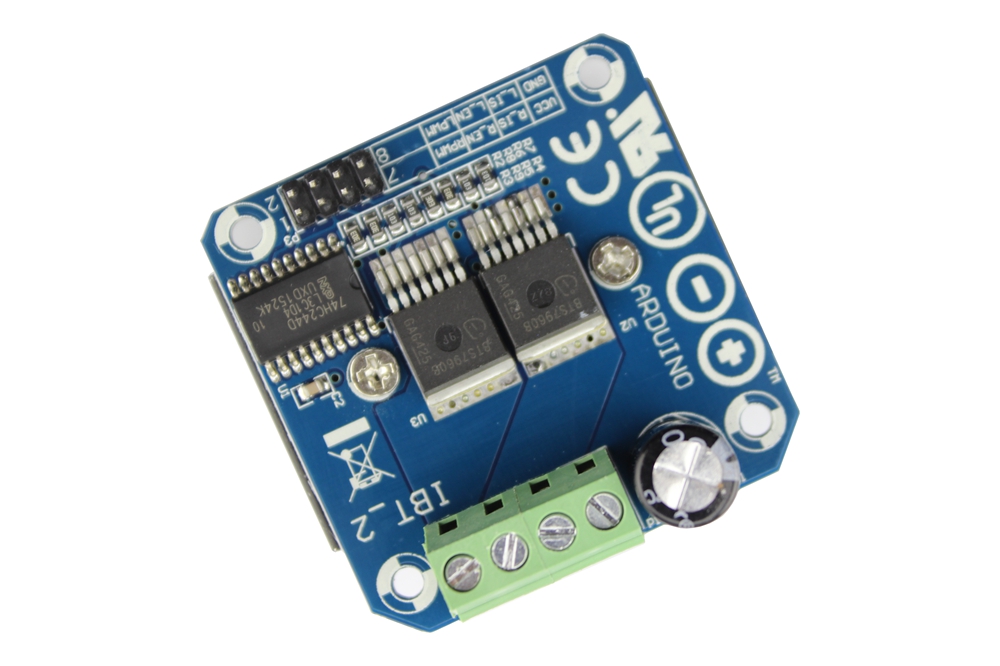

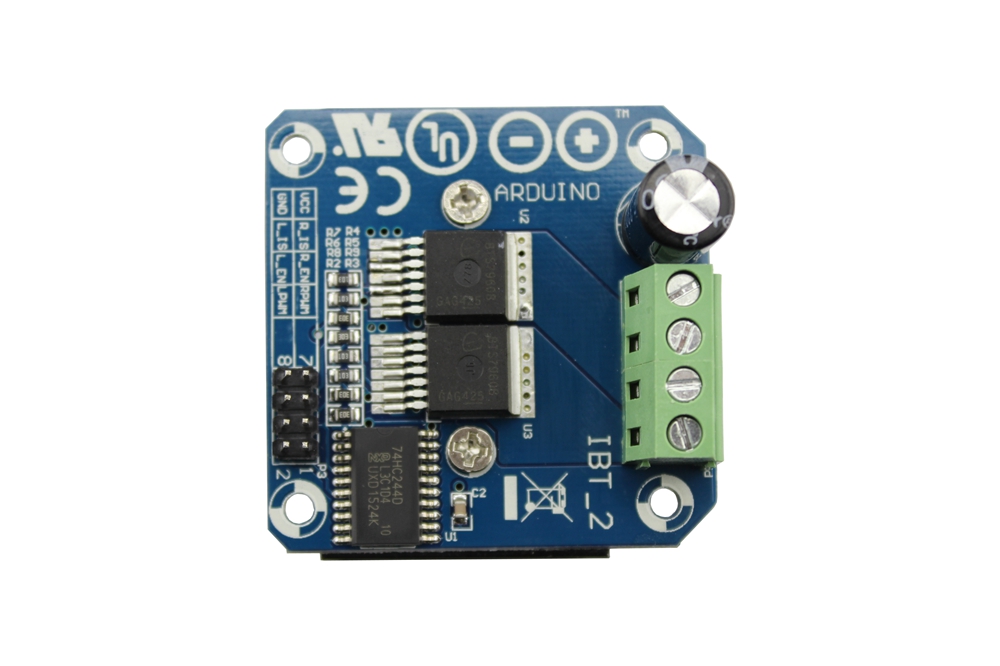

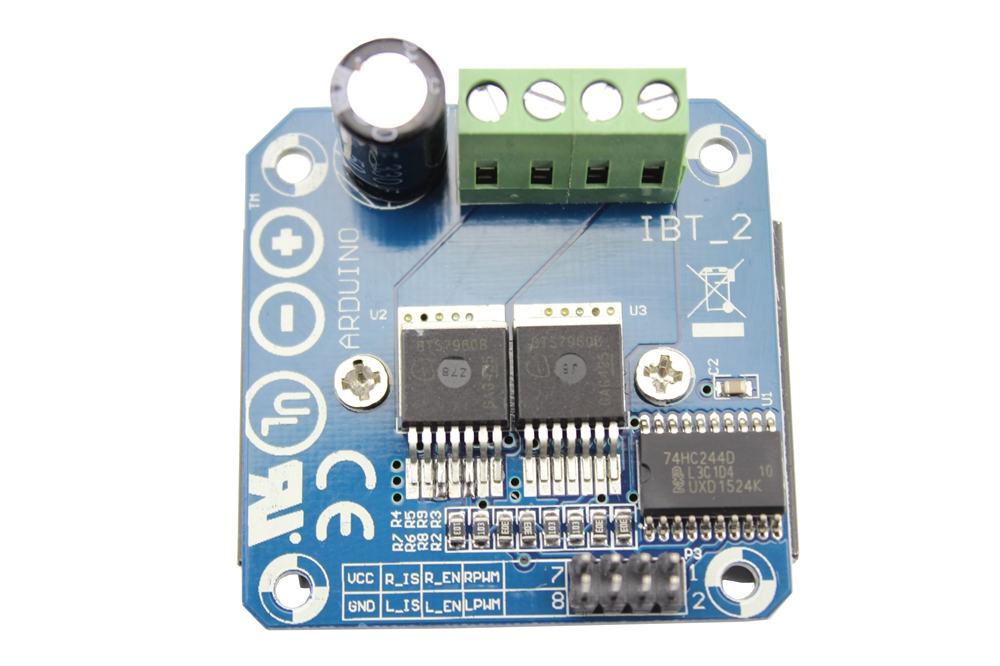

Large Current Motor Driver Module BTS7960 - 43A

US $12.00
Always Free Shipping
  • Model: BTS7960-Modules
  • Shipping Weight: 72g
  • 69 Units in Stock

Description

The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!

Applications

  • Current diagnostic
  • Slope adjustment
  • Dead Time generation
  • Overtemperature, overvoltage, undervoltage, overcurrent protection
  • Short circuit protection

Specifications

  • Input voltage: 6V-27V
  • Model: IBT-2
  • Maximum current: 43A
  • Input level: 3.3-5V
  • Control mode: PWM or level
  • Duty cycle: 0-100%

Package list

  • BTS7960 module x 1
