Description

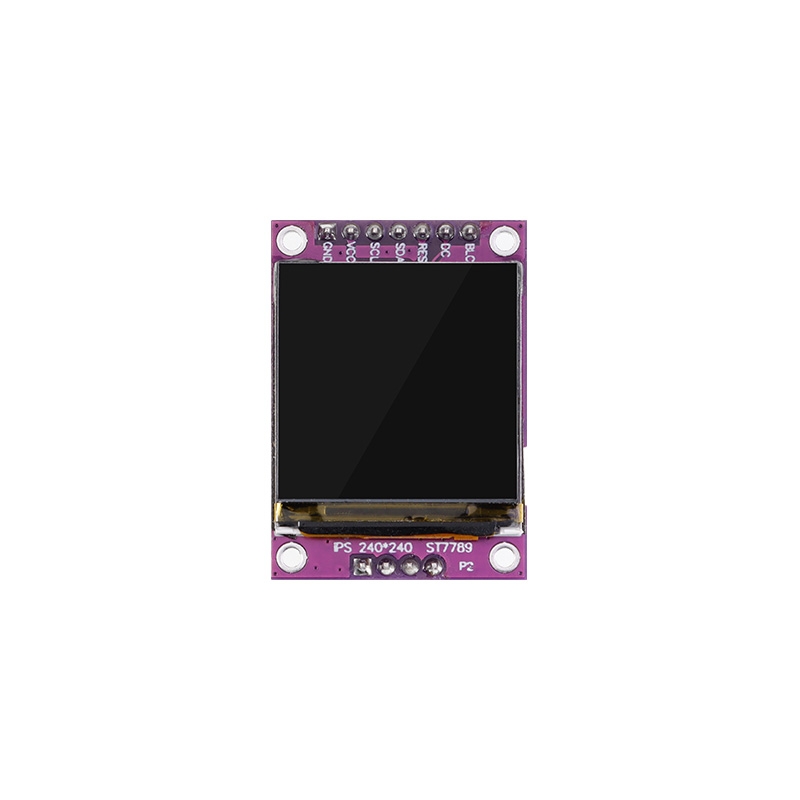

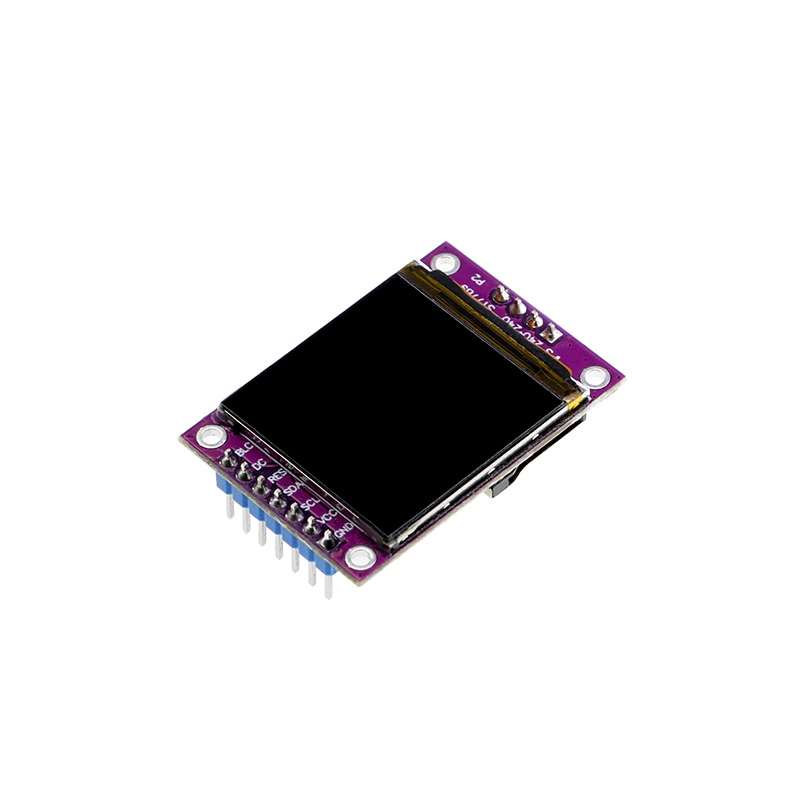

This is a 1.3 inch display screen with a resolution of 240 (RGB) x240. It is an IPS full view LCD display panel so the color looks great in any direction. The drive IC is ST7789, and the universal 7-pin SPI interface is used.

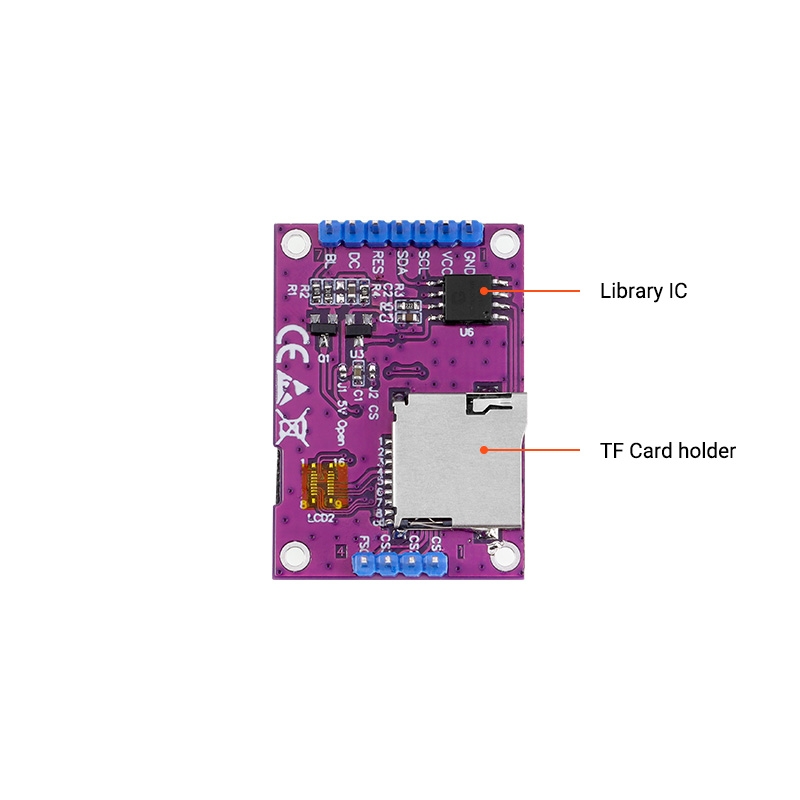

The bottom has an SD card slot, which makes it easy to load full-color bitmaps from the MicroSD card in FAT16/FAT32 format.
Support the main control MCU such as ESP32/ESP8266/Arduino/STM32.
Specification
- Built-in microSD slot
- Operating Voltage: 3.3V
- Backlight: 2-Chip white LED, Vf=3.2V(If=20mA)
- Resolution: 240 (RGB) x240
- Interface: SPI serial
- Drive IC: ST7789
- Dimension: 35.8mm x 35.8mm x 5.3mm
Pin Description
|
No.
|
Symbol
|
Description
|
|
01
|
GND
|
GND
|
|
02
|
VCC
|
Power Supply
3.3V: U3 disconnected, J1 short circuited
5V: U3 welding, J1 disconnected
|
|
03
|
SCL
|
SPI Clock Signal
|
|
04
|
SDA
|
SPI Data Signal
|
|
05
|
RESET
|
Reset Control Signal
|
|
06
|
A0
|
Data/Command Selection Pin
0: Command
1: Data
|
|
07
|
BL
|
Backlight Control Pin
High level: enable backlight
Low level: disable backlight
|
|
No.
|
Symbol
|
Description
|
|
01
|
CS1
|
LCD Chip Selection Pin
J2 is short circuited to ground: not in use
J2 is disconnected: in use
|
|
02
|
CS2
|
Character Library Chip Selection Pin
|
|
03
|
CS3
|
SD Card Selection Pin
|
|
04
|
FSD
|
Character Library Chip and SD Card Data Output Pin
|
