Description

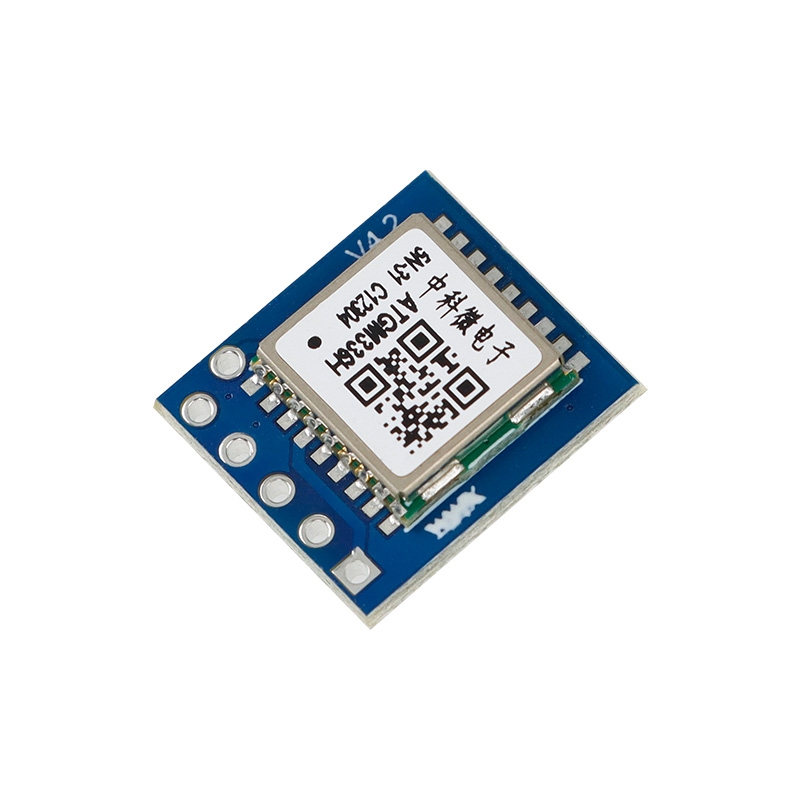

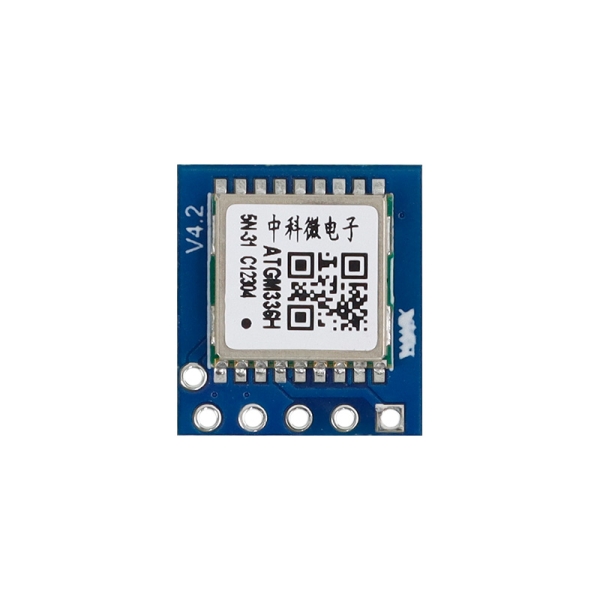

This is a small quick positioning and navigation module based on the ATGM336H. It can provide real-time location information, and support various satellite navigation systems, such as Beidou/GPS/GLONASS. The positioning accuracy error is measured at about 2.5m.
In serial output mode, this is compatible with various mainboards equipped with serial output: Arduino-compatible board, Raspberry Pi, STM32, and so on. This module is suitable for vehicle navigation, device navigation, handheld positioning, and wearable, etc.
Feature
- Strong signal
- Support Beidou/GPS /GLONASS satellite system
- Support 3.3-5V power supply, convenient access to 3.3V or 5V single-chip system

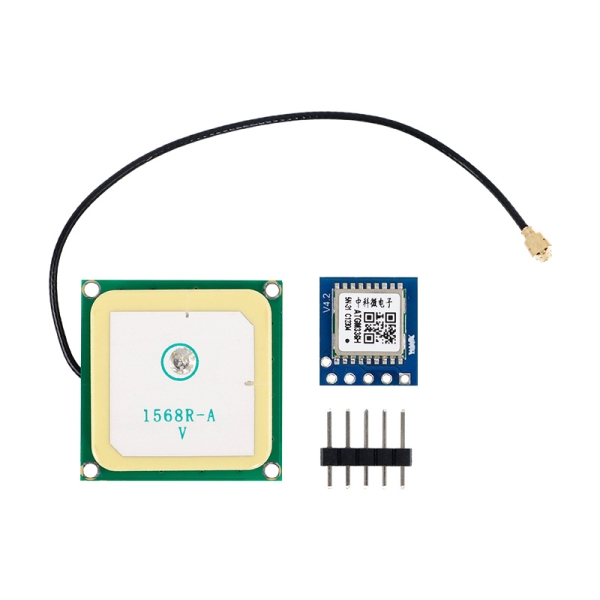

- Come with SMA and IPEX antenna port
- Onboard rechargeable battery, speed up hot-start and search
- 2.5m positioning accuracy
- Baud rate: 9600 (can be set by software)
- Demension: 25mm x 25mm
- Antenna length: 10cm

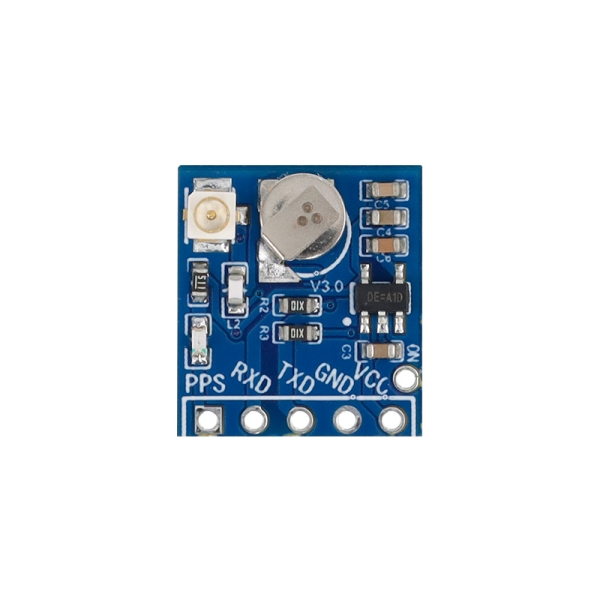

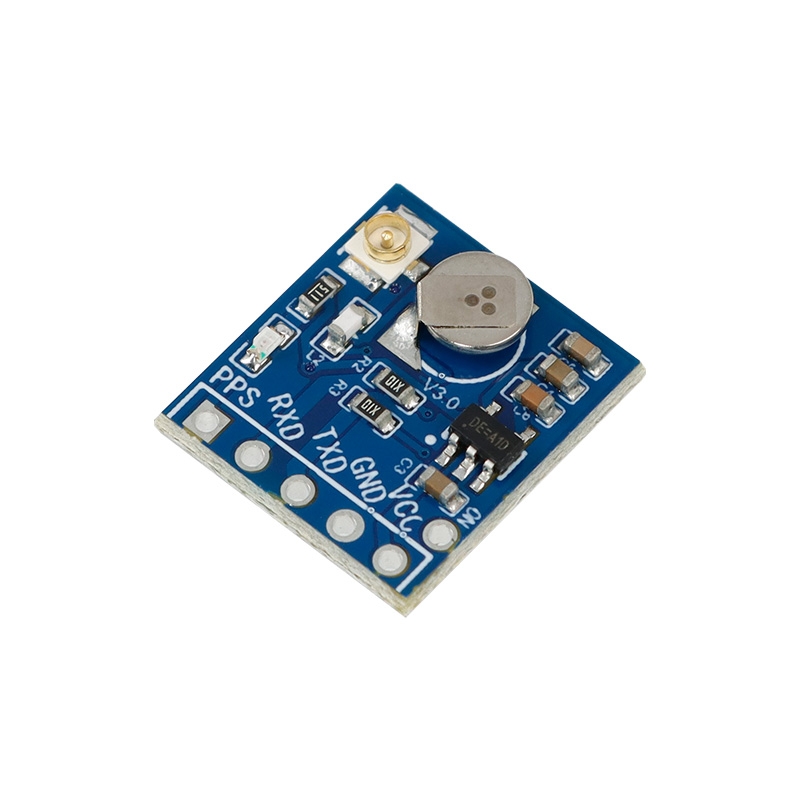

Board Overview
- VCC: Power Input(3.3V-5V)
- GND: Ground
- TXD: Transmit
- RXD: Receive
- PPS: Pulse Output Per Second
