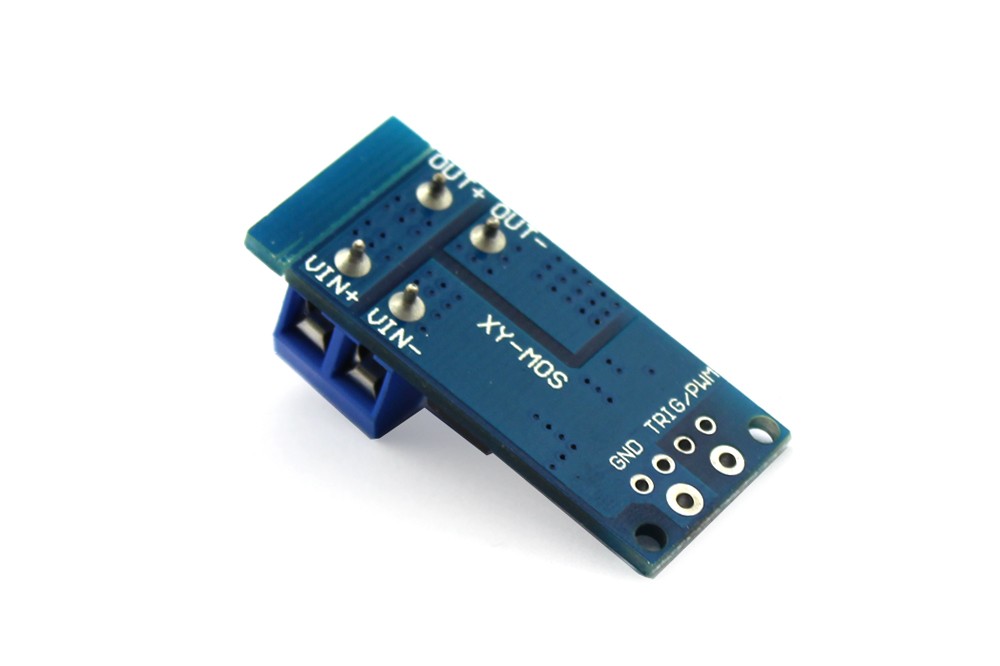

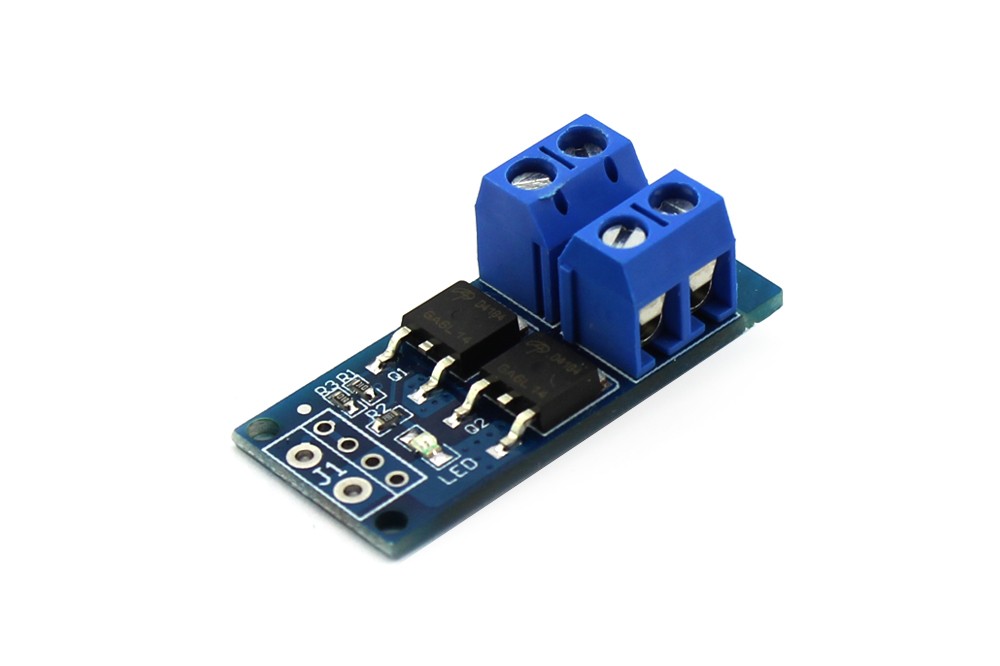

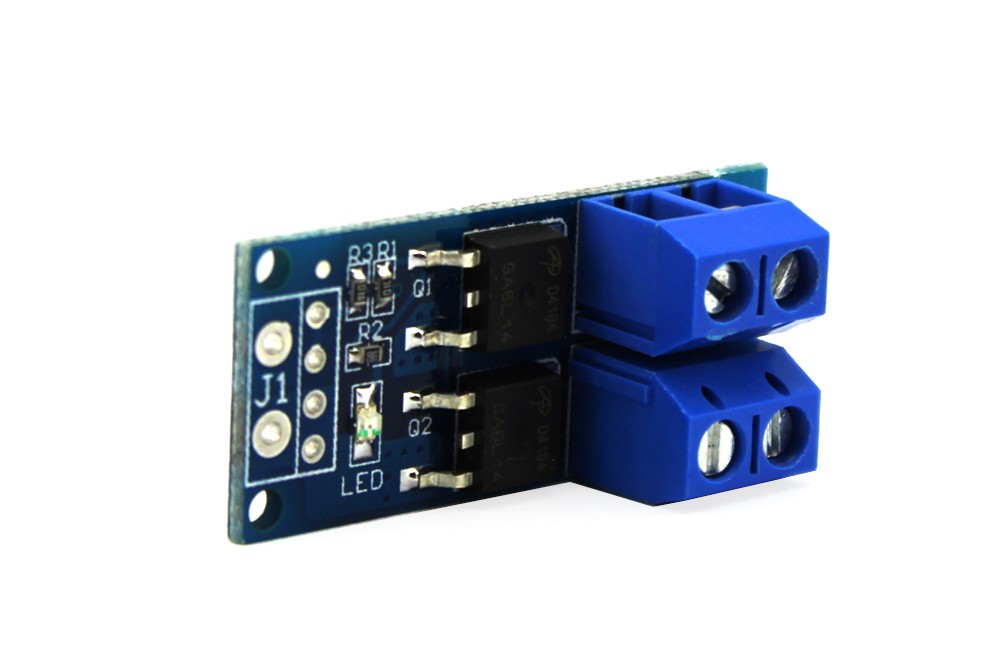

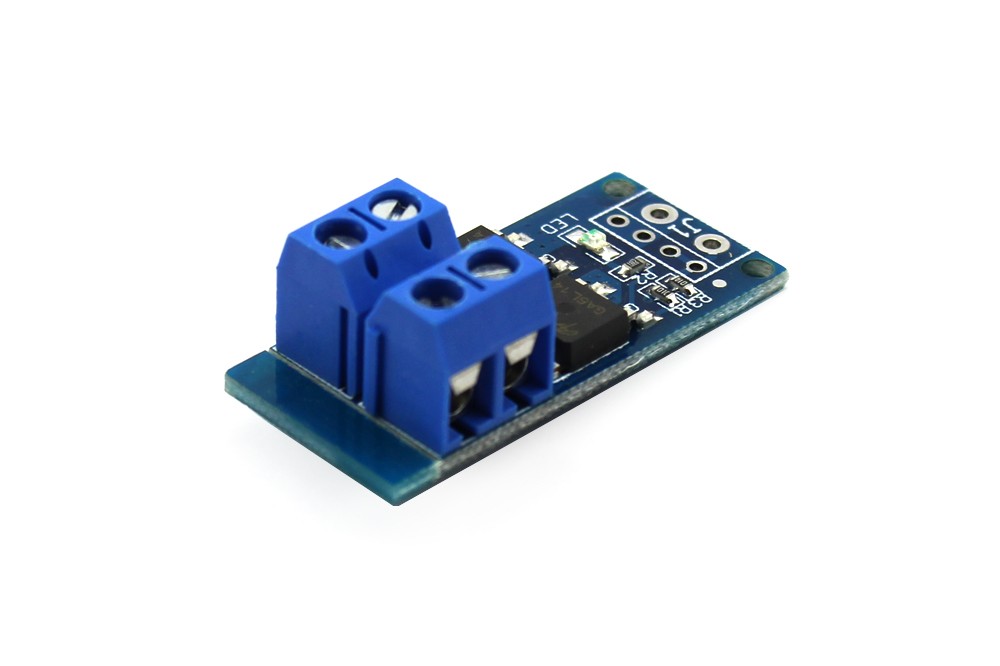

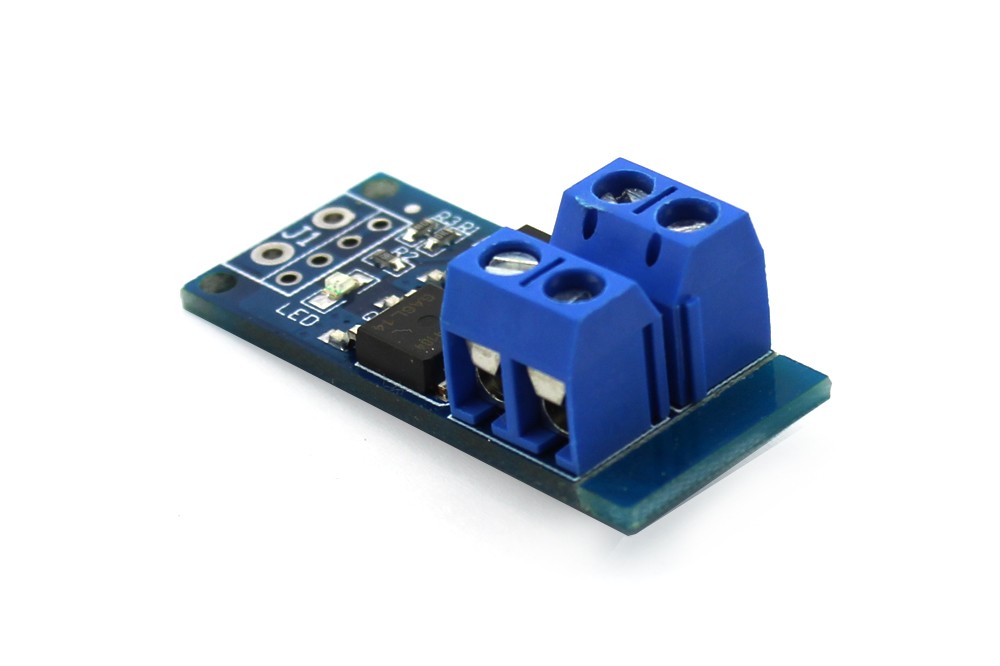

High-power MOSFET Trigger Switch Drive Module

US $0.92
Always Free Shipping
  • Model: MOSFET-Trigger-Switch-Module
  • Shipping Weight: 3g
  • 170 Units in Stock

Description

The board is of high power MOS trigger switch driver module and control board with field-effect tube to adjust the electronic switch. It adopts imported double MOS parallel active output to show lower internal resistance,greater electric current and power.

Besides it works at 15A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way.

What’s more, it can be applied to powerful devices which could be controlled by output terminal like electric motors and light bulbs to control the speed of motor and the light of bulbs.Certainly,you can apply it to devices which could input PWM for control like LED light belt,DC motor,Micro pump and solenoid valves.

Features

  • The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
  • Wide voltage, the perfect support for PWM
  • Easily control high power devices
  • Input PWM to achieve motor speed control, lamp brightness control

Specifications

  • Operating Voltage: DC 5V - 36V;
  • The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
  • Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A.
  • Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter
  • PWM, motor speed control, lamp brightness.
  • Availability: unlimited switch
  • Operating temperature: -40-85
  • Dimension: 34mm x 17mm x 12mm

Package list

  • High-power MOSFET Trigger Switch Drive Module x1
