Description

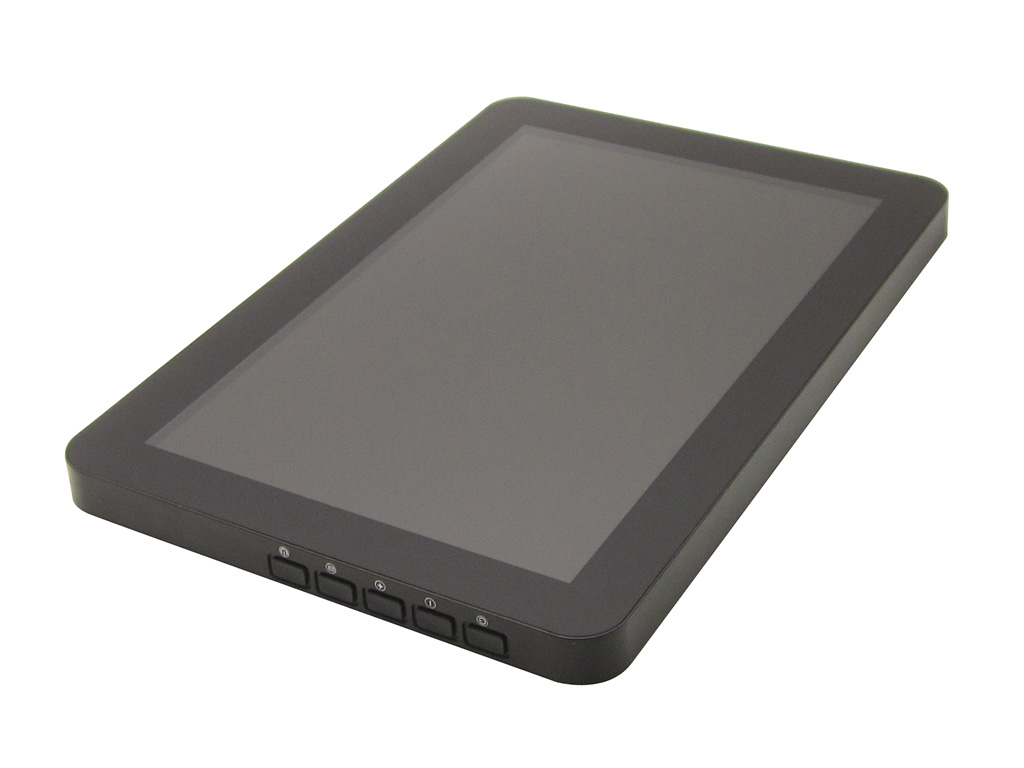

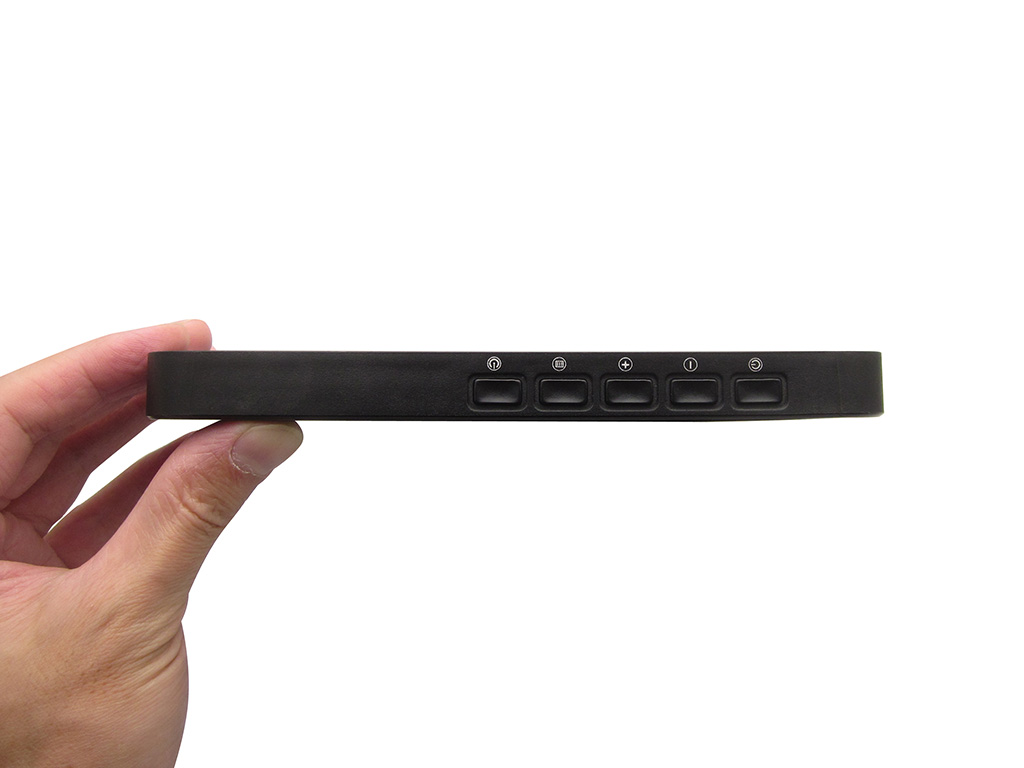

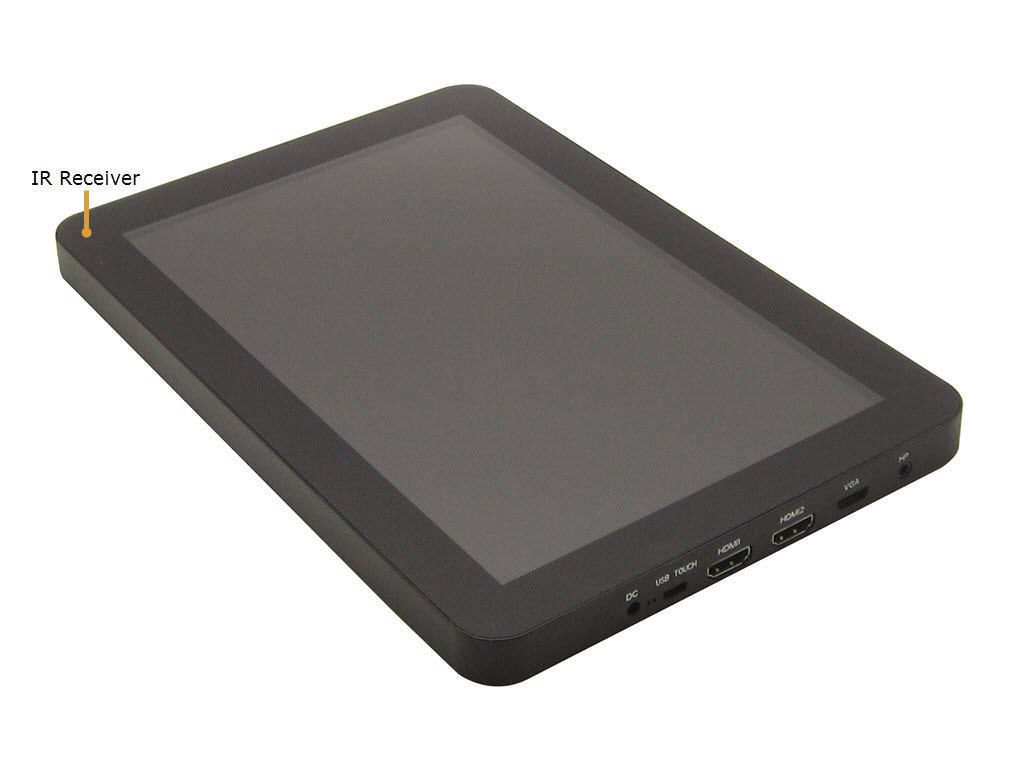

The 10.1 inch IPS LCD Monitor has a high resolution of 1280x800 pixels, which can brings you a subversive color experience, no splash screen and smear like. With the keys on the monitor side, you can choose control input interfaces by pressing the keys or use the remote control. It supports multiple video input interfaces such as HDMI, VGA, USB Multimedia. Besides, 12V/1A adapter power supply allows a low power consumption, supports audio speaker with built-in high-quality loudspeakers.
This LCD Monitor could be used in the Raspberry Pi PS3 PS4 WiiU Xbox360 windows system and so on, which can bring you a visual feast.
LCD Panel Specifications
| Screen diagonal (Inch/cm) |
10.1/25.65 |
| Display active screen size (cm) |
21.70×13.60 |
| Aspect ratio |
16:10 |
| Physical resolution |
1280×800 |
| Maximum showable resolution |
1920×1080 |
| Colours displayed |
16.7M |
| Brightness (cd/m2) |
350 |
| Contrast |
800:1 |
| Typical reaction time Tr/ Tf (ms) |
10/15 |
| Visual Angle horizontal/vertical |
170/170 |
| Backlight / Backlight Lifetime (hours) |
LED / 20,000 |
Touch Panel Specifications
| Touch Technology |
Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers |
Windows, Linux, Android |
| Touch Life (Contacts) |
Unlimited |
| Surface Hardness |
7H |
| Surface Treatment |
Anti-glare (chemical etched) |
Product Specifications
| Weight |
0.8 kg |
| Appearance size |
258mm x 176.5mm X 16mm |

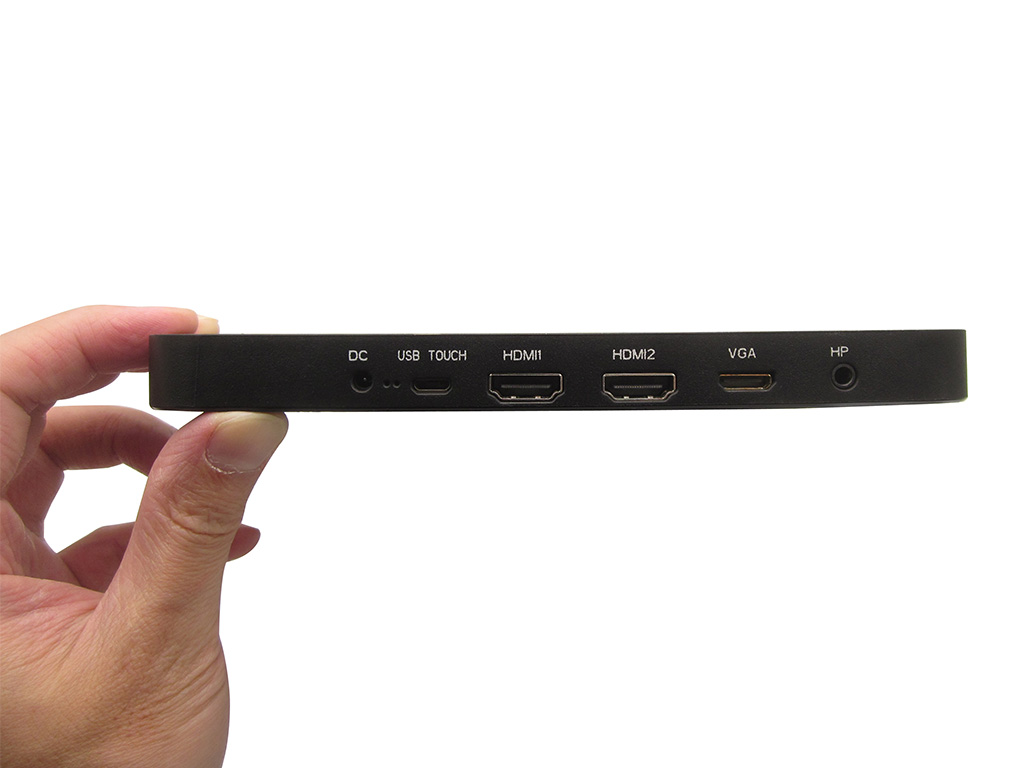

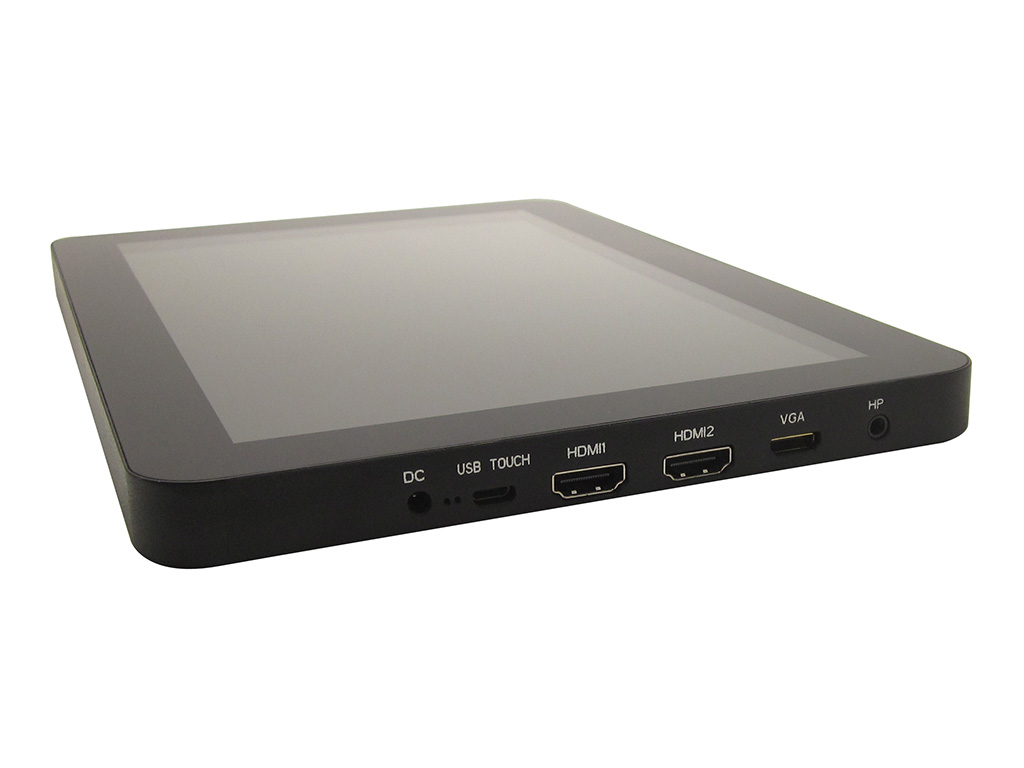

| Video input interfaces |
HDMI, VGA |
| Color |
black |
| Working environment temperature |
-10℃--+60℃ |
| Working power supply |
3.5*1.35mm DC12V/1A |
| Audio Output |
Headphone Jack 3.5mm & HDMI Audio |
| USB Interface |
Micro USB 1.1 device for USB touch, USB 2.0 host for Multi-Media |
Package list
- HY101CTM x 1
- HDMI cable x 1
- DC 12V/1A Power adapter x 1
- Remote control x 1
- USB A Receptacle to Micro USB cable x1
- MINI HDMI to VGA cable x 1
