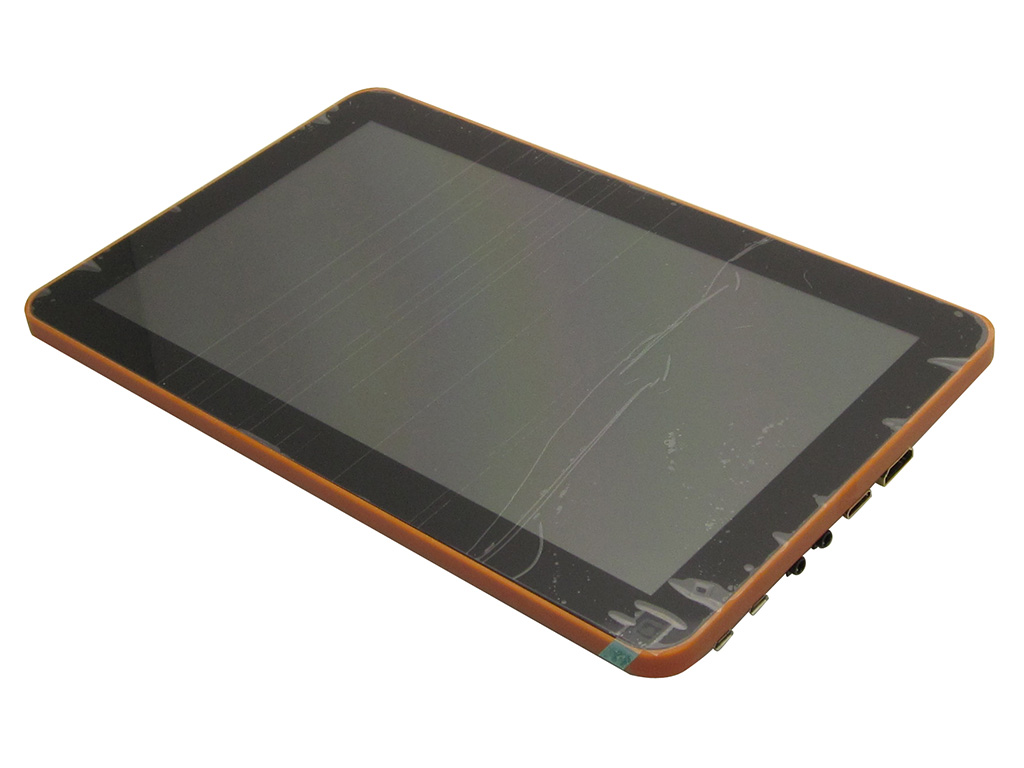

10.1 Inch LCD TFT 1024x600 Portable Monitor with Touch

US $78.00
Always Free Shipping
  • Model: HYM101A
  • Shipping Weight: 700g
  • 77 Units in Stock

Description

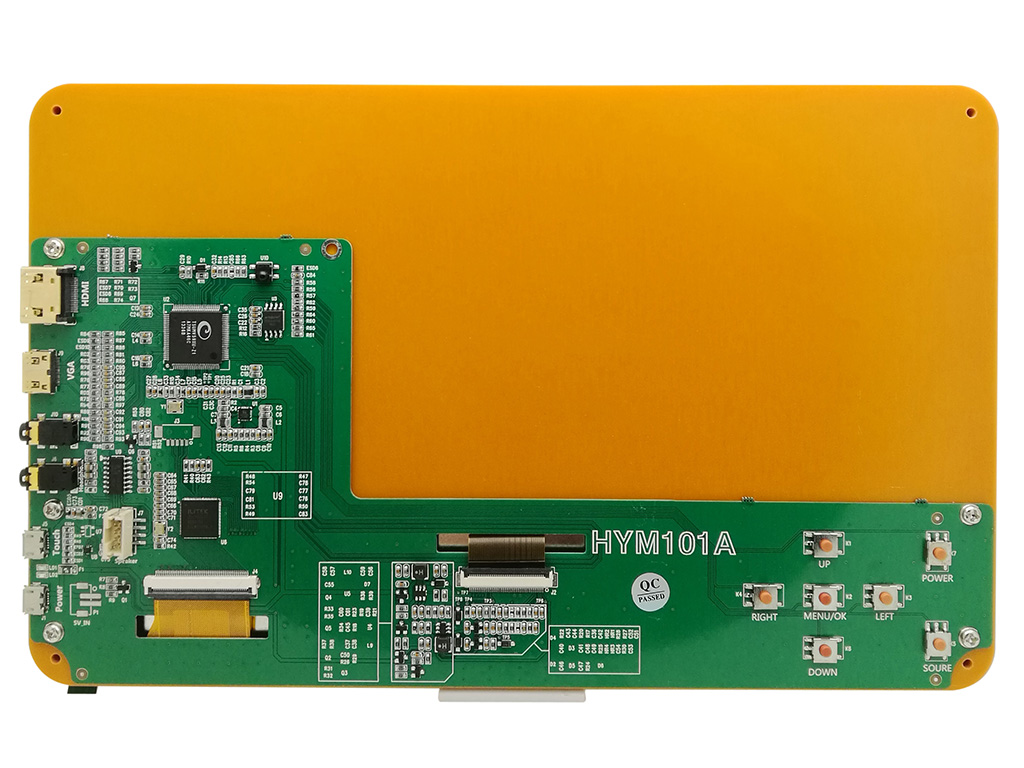

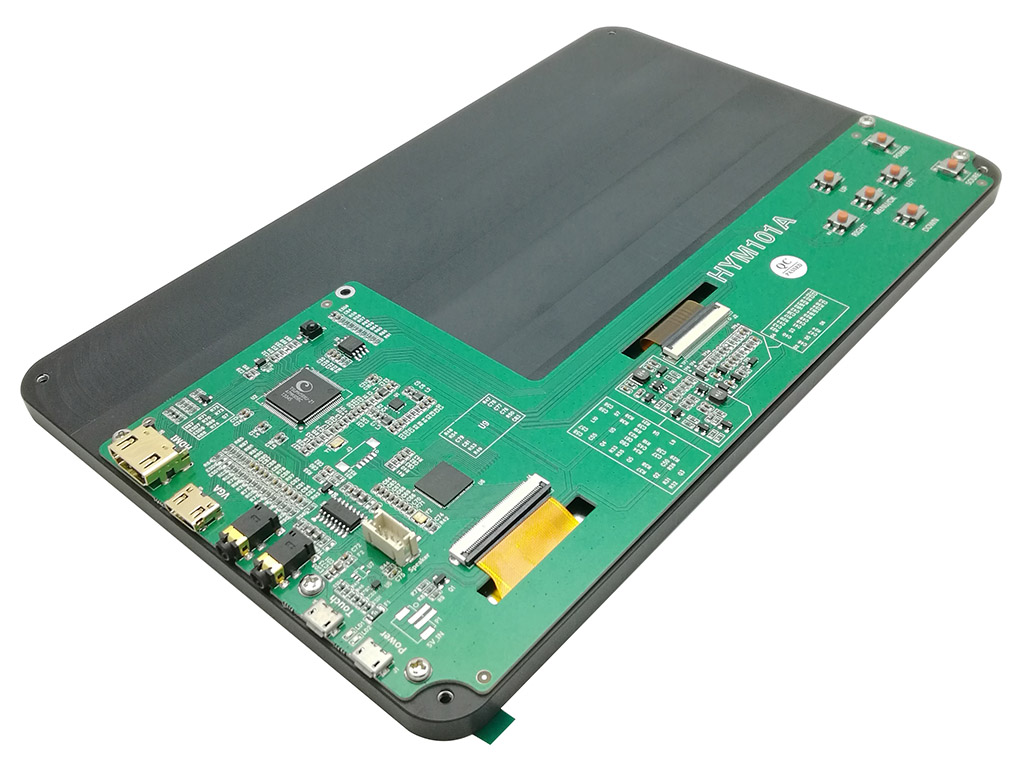

The 10.1 inch LCD Monitor has a resolution of 1024x600 pixels, which can brings you a subversive color experience, no splash screen and smear like. With the keys on the monitor back, you can choose control input interfaces by pressing the keys or use the remote control. It supports multiple video input interfaces such as HDMI, VGA, USB Multimedia. Besides, 5V/1A micro USB power supply allows a low power consumption, supports audio with external high-quality loudspeakers or headphone.

This LCD Monitor could be used in the Raspberry Pi PS3 PS4 WiiU Xbox360 windows system and so on, which can bring you a visual feast, also support with spacing mounting holes for general wall mount.

LCD Panel Specifications

Screen diagonal (Inch/cm) 10.1/25.65
Display active screen size (cm) 22.27×12.52
Aspect ratio 16:9
Physical resolution 1024×600
Maximum showable resolution 1920×1080
Colours displayed 16.7M
Brightness (cd/m2) 320
Contrast 500:1
Typical reaction time Tr/ Tf (ms) 10/15
Visual Angle horizontal/vertical 120/120
Backlight / Backlight Lifetime (hours) LED / 20,000

Touch Panel Specifications

Touch Technology Projected Capacitive 10-point Multitouch
Touch Panel Drivers Windows, Linux, Android
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etched)

Product Specifications

Weight 0.7 kg

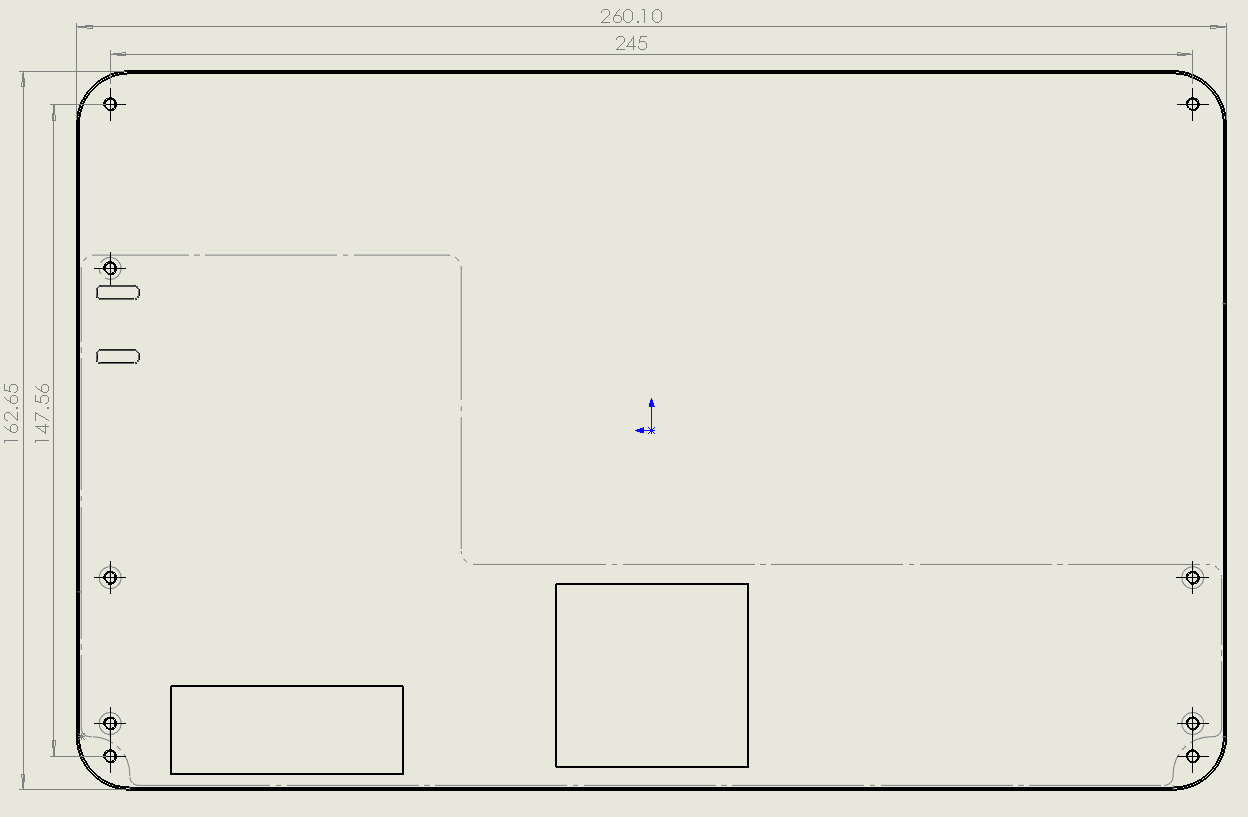

Appearance size 260.1mm x 162.65mm X 15.4mm (Base 8mm +  PCB 7.4mm)
Mounting Hole 245 x 147.56mm (M3 screw hole)

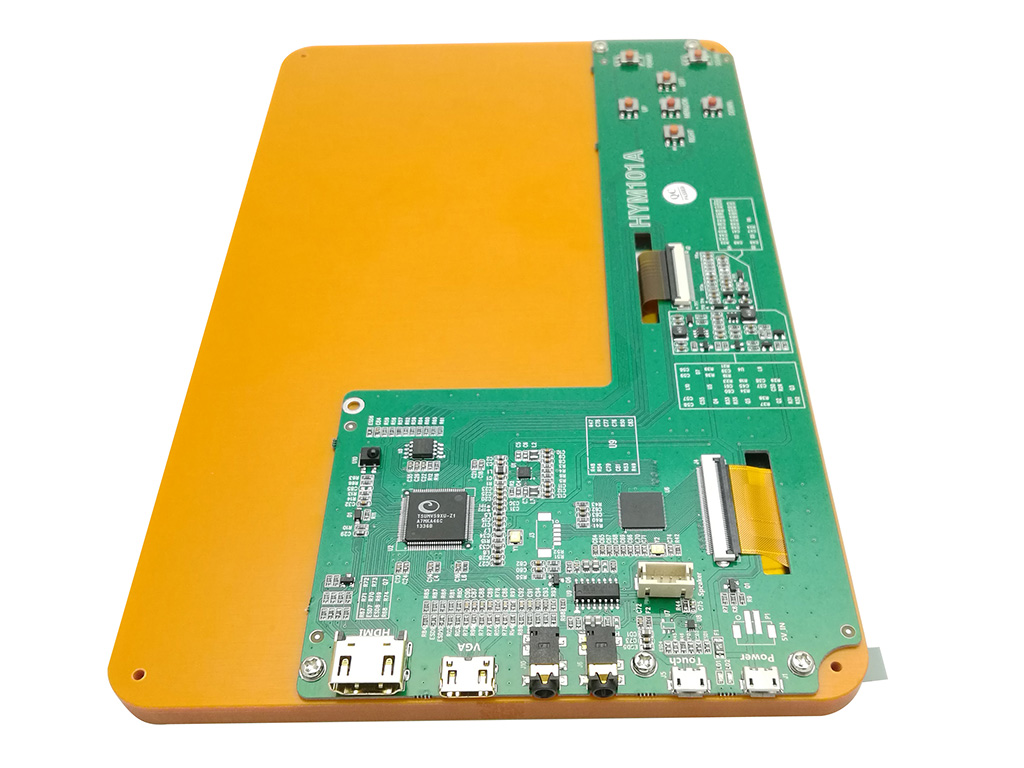

Video input interfaces HDMI, VGA

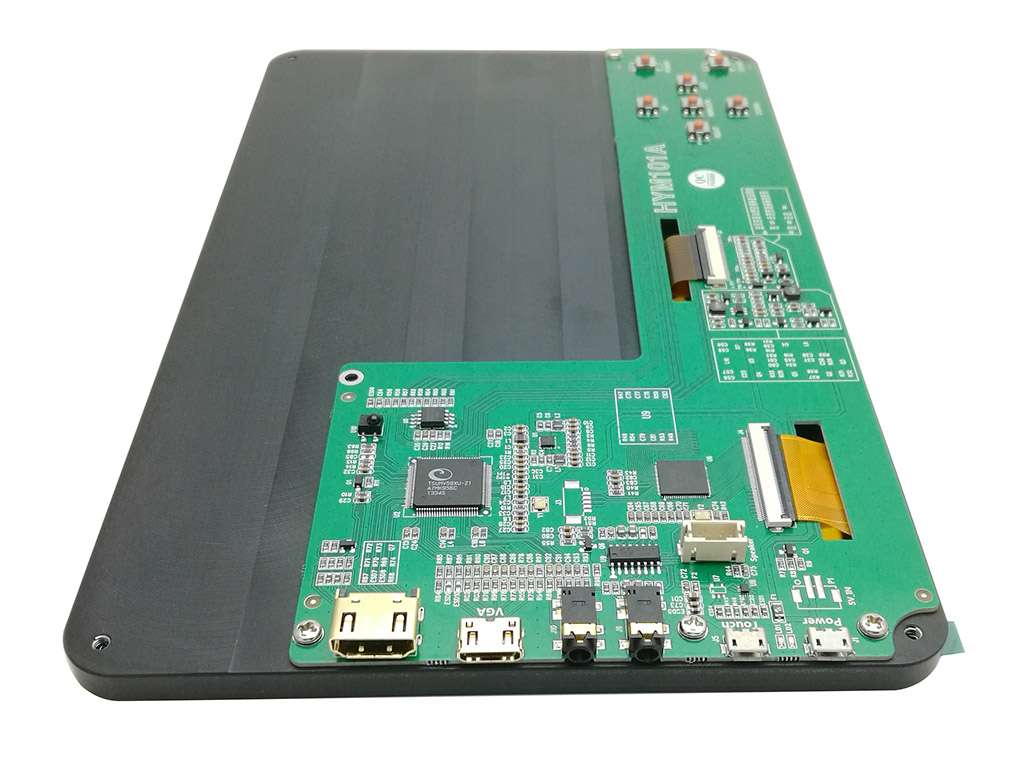

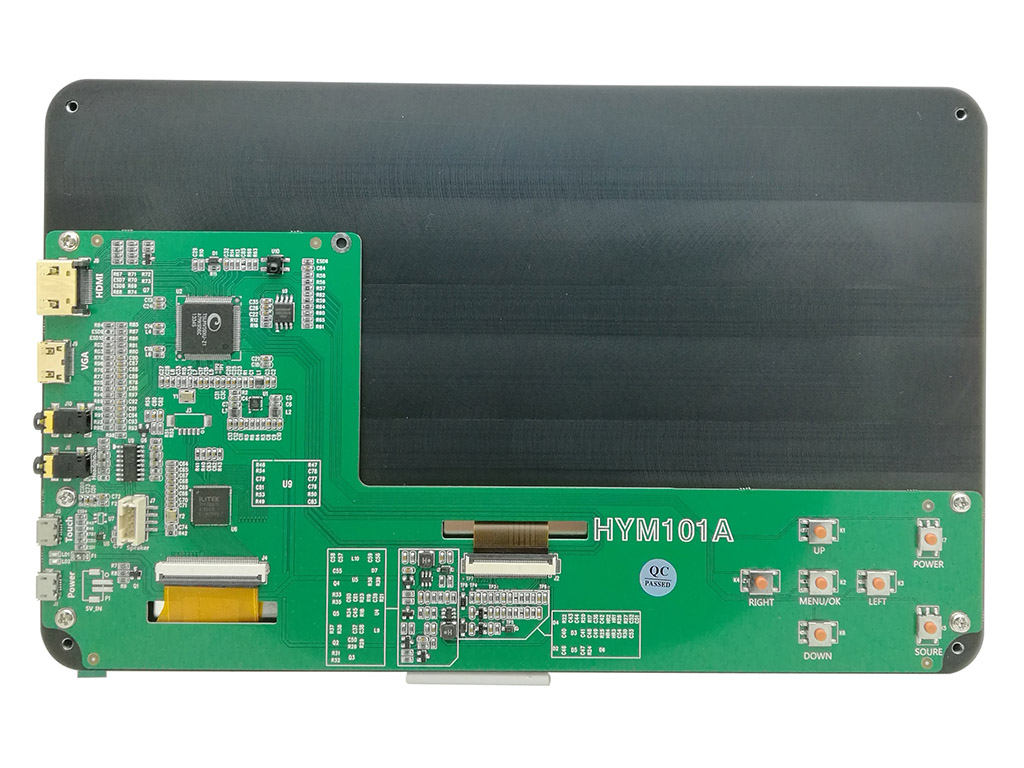

Color black or orange
Working environment temperature -10℃--+60℃
Working power supply 5V/1A micro USB
Audio Output Headphone Jack 3.5mm & HDMI Audio
USB Interface Micro USB 1.1 device for USB touch, USB 2.0 host for Multi-Media

Package list

  • HYM101A x 1

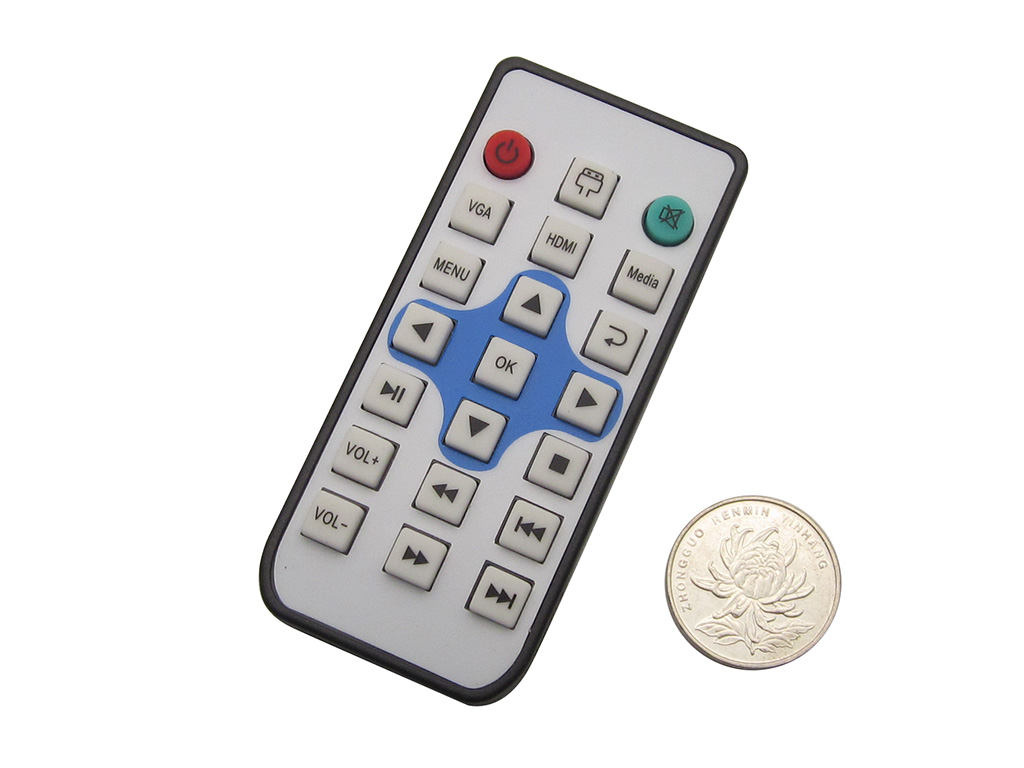

  • Remote control x 1
  • USB A Receptacle to Micro USB cable x1
  • MINI HDMI to VGA cable x 1

Documents
