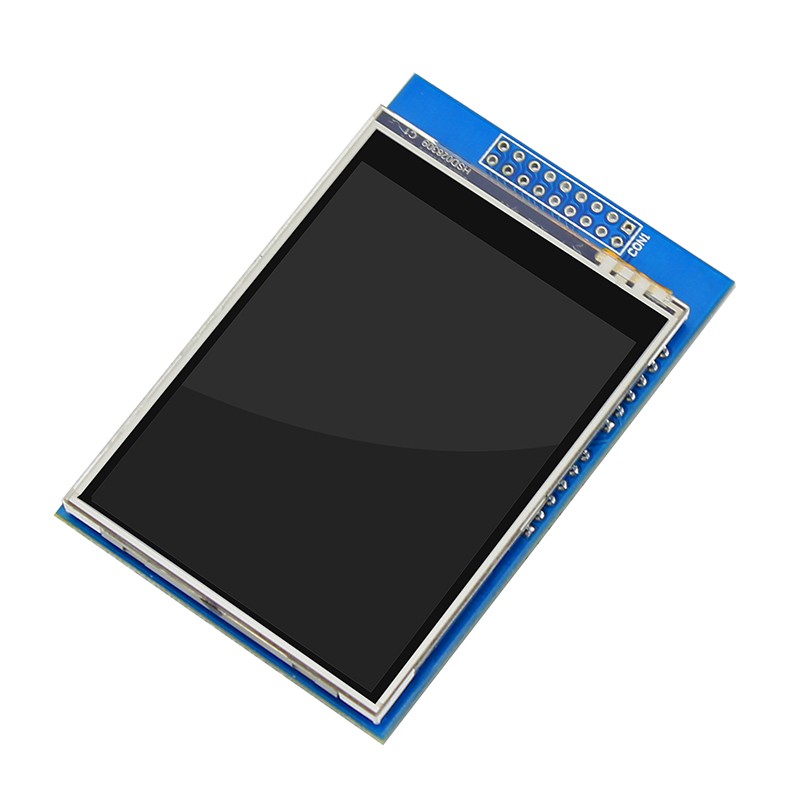

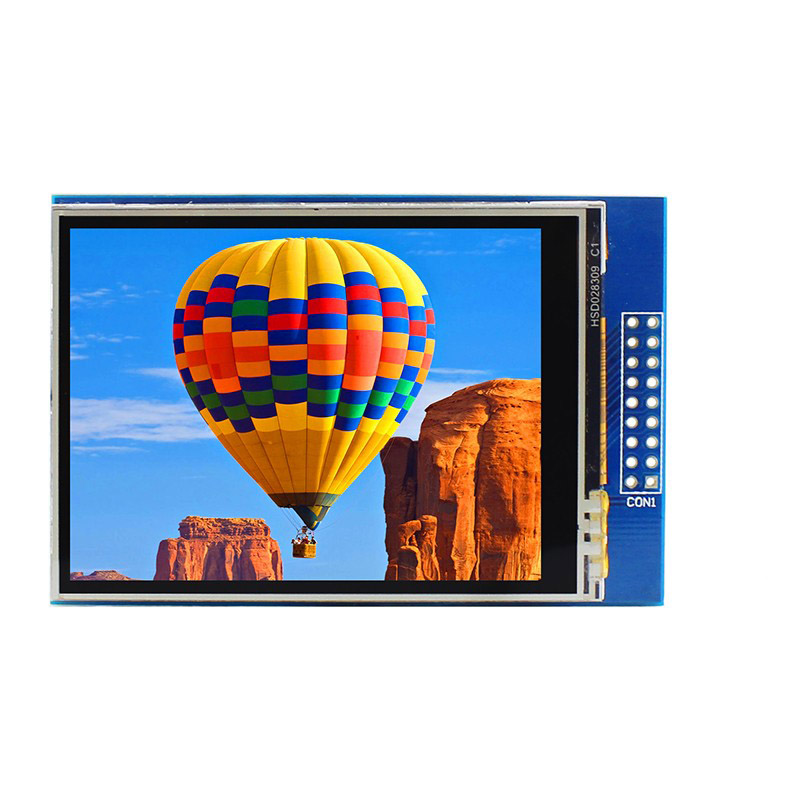

2.8 inch TFT Touch Shield with SD Socket for Arduino

US $8.20
Always Free Shipping
  • Model: 2.8-TFT-Shield
  • Shipping Weight: 35g
  • 100 Units in Stock

Description

This is 320x240 resolution 2.8-inch touch display, it supports development boards such as Arduino UNO board and Mega2560 board or boards compatible with UNO without wiring. By adopting 8-bit parallel bus, it can refresh quicker and smoother than SPI. It supports 16-bit RGB 65K color display that can provide the rich color display.

Features

  • 2.8-inch display is compatible with Arduino UNO and Mega2560, and can be connected directly by inserting the pin into the interface without wire.
  • 320x240 resolution and support touch function.
  • With SD card slot to facilitate the expansion of the experiment.
  • Military-grade process standards, long-term work stably.
  • 2.8-inch display is compatible with all kinds of 5v or 3v MCU with 3.3v-5v change-over circuit.

Specifications

  • Type: TFT
  • Resolution: 240x320
  • Driver Chip: ILI9341
  • Module Interface: 8-bit parallel interface
  • Effective Display Area(HxW): 57.6x43.2mm
  • PCB Module Size(WxH): 78.22x52.7mm
  • LCD Area(WxHxT): 50x69.2x2.5mm
  • Backlight: 4 chip highlight white LEDs
  • Current Consumption: 120mA
  • Power Voltage(VDD/VCC): 3.3-5.5V
  • Backlight Voltage: 2.8-3.3V

Package list

  • 2.8 inch TFT Touch Shield with SD Socket for Arduino X 1
